DC Refrigerators & Freezers

Refrigerators & Freezers



Good quality, highly-efficient DC fridges and freezers.

All run from 12 volt or 24 volt batteries, charged by solar panels or from the mains.

At the fridge factory 2015DC to DC has the advantage of running directly from a battery, thus eliminating inverter inefficiencies of 5% to 25%.

The electronics have over and under voltage protection, thermal protection and pressure protection (in case the unit is disconnected and then reconnected whilst running).

Because of its efficiency, it takes the seasonal changes in solar-power systems to their full advantage.    i.e. In the summer, when the days are longer and more solar power is available, the fridge may run longer because it is hotter.    In winter the reverse occurs, but their main attribute is that they perform just as well as 240 volt fridges, but only consume a fraction of the power.



Chest Freezers

  • These DC domestic freezers come complete with baskets for easy loading and unloading.
  • They are constructed from zinc – coated, painted steel cabinets, with increased foam thickness for greater energy efficiency.
  • Complete with an easy-to-use drain for defrosting, they can be factory set for operation as a fridge, a fridge to sub-zero, or as a deep freeze.
  • Used as a fridge, they have absolutely minimal power draw.
  • These freezers have been installed right across Australia, the Pacific Islands, PNG and throughout Asia.
  • They are reliable, and continue to use very low power consumption for all of their long lifetime of operation.

Solar freezer300 litreInside of 300 litre solar freezer

Featured on all models:

1: Direct connection to DC 12V or 24v.
2: Low battery discharge protection for battery.
3: Automatically turns off when battery voltage is low.
4: Extremely strong Lid, Hinge, and Safety Lock.
5: Thermometer with Celsius and Fahrenheit scales.
6: Intelligent operation under preset modes.
7: Self-detects 9 faults, & with alarm.
8: 100mm thick wall insulation, CFC Free.
9: LED light in the cabinet lid.
10: Ultra high Energy Efficiency
11: High energy saving and low temperature loss design.

170 litre DC Freezer

170 litre 12 – 24v DC Freezer

127 litre DC Freezer

127 litre 12 – 24v DC Freezer







The freezers undergo continuous laboratory testing for improvements.  When I was visiting the factory, there were several models of the 300 litre models being side-by-side tested for performance, to determine the model that had the best characteristics.

Testing DC freezer performance

Testing DC freezer performance

Reliable DC Compressors

Reliable DC Compressors























Single temperature Freezers

 Single temperature Freezer models
Single compartment, 1 or 2 lids
Power use
watts
Dimensions
mm  LxWxH
Weight
kg
128 litre45804 x 726 x 81042
170 litre45804 x 726 x 96045
233 litre501213 x 736 x 81053
303 litre501260 x 755 x 101558
336 litre551613 x 736 x 86564
384 litre551613 x 736 x 88570
433 litre601613 x 736 x 96076

 Prices do not include freight

Chest freezer dual temperature

Large Chest freezer – 408l dual temperature model



Dual temperature Freezers (can use as fridge and freezer)

408 litre DC Freezer

408 litre DC Freezer



DC freezer-408l-inside

DC freezer-408l-inside



 Dual temperature Freezer models

2 compartments, 2 temperatures

FridgeFreezerPower use
watts
Dimensions
mm  LxWxH
Weight
kg
212 litre94118501213 x 736 x 81053
277 litre127150501213 x 736 x 96058
316 litre145170551613 x 736 x 81064
362 litre169193701613 x 736 x 88570
408 litre192216601613 x 736 x 96076

 Prices do not include freight



Upright Refrigerators

Solar refrigerators

Bruce showing range of Solar DC refrigerators

Highly efficient Refrigerators and Freezers

    • Drastically cut your power use !
    • These are some of the most efficient refrigerators and freezers available
    • Refrigeration is one of the highest energy use type of appliances in the home.
    • These are suitable for low energy homes & also mobile use, for instance motor homes and houseboats
    • Sizes up to 198 litres.   Bigger sizes expected to be available in 2016.
Solar DC  refrigerator with top freezer

Solar DC refrigerator with top freezer

Solar DC refrigerator with bottom freezer

Solar DC refrigerator with bottom freezer



Fridge-freezer modelsPower useFridge/FreezerDimensionsW x D x H  mmWeight
kg
92 litre Bar Fridge60w82 / 10470 x 475 x 81523
118 litre 2 door72w76 / 42470 x 475 x 116530
142 litre 2 door72w100 / 42470 x 475 x 126532
158 litre 2 door72w98 / 60500 x 530 x 137041
176 litre 2 door72w116 / 60500 x 530 x 145043
198 litre 2 door72w138 / 60500 x 530 x 165046

Prices do not include freight

Allow approximately 3 – 5 weeks for delivery after ordering.



New Models:

– 210 litre 12/24v DC fridge – freezer



210litre DC fridge - freezer      Our price:  $1746



 – 295 litre 12/24v DC fridge – freezer

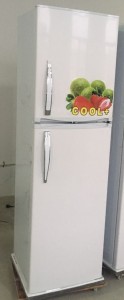

Juka 295 DC fridge freezer

Juka 295 DC fridge freezer

Our price:  $2034



 – 176 litre 12/24v DC All-fridge

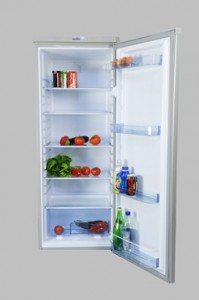

176 litre all-fridge open

Juka 176 litre all-fridge open

These fridges are made-to-order, and therefore expected delivery time is 10 working days for manufacture and testing, and a further four weeks for shipping.

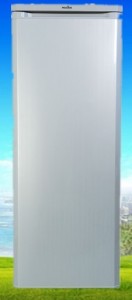

Juka All fridge 175 litre 1door

Juka All fridge 175 litre 1door

Our price:  $1782

All-fridge capacity176 litres
Power requirementDC  12v/24v
Temperature range0 – 10  for fridge
Power consumption70W
Product size(mm)550 x 570 x 1395mm
Carton size(mm)570*600*1455mm
RefrigerantR134a
Weight    Net /Gross44 / 49 kg
Colours availableWhite / silver



Solar Merchandising and Display Refrigerator

solar display fridge

208 litre solar display fridge

Shows a clear view of products being merchandised.

WORKS ANYWHERE WITH OR WITHOUT ELECTRIC SUPPLY

These double-glass door display merchandisers are great for selling popular drinks and snack foods at fairs, markets, food vans where solar power can be used to keep the food cold.   It will help increase sales of grab-and-go items liked bottled water, soft drinks, juice and energy drinks, along with sandwiches, salads, and prepackaged snack foods.   A robust, lightweight and flexible food service merchandising fridge, that runs directly from batteries, charged by solar panels, the vehicle or the mains, reliably in any location.

  • Good quality, intelligent energy control system.
  • Very low energy consumption.
  • Ideal for use in any mobile or rural take-away foods van or sandwich shop, or a grocery store, restaurant, lodge, camping, or beach store where there is a poor power supply.
  • 12/24v DC option.
  • Fully hermetic compressor with integrated control electronics, low-voltage protection, and electronic fuse/automatic reverse pole protection.
  • Connects to any 12 or 24 volt battery, it has built-in low-battery protection, and will automatically turn off with low battery voltage

208 litres capacity,    Dimensions 490(L) x 600(W) x 1760(H)

This fridge features:

• Fully hermetic Domus compressor with integrated control electronics.
• Automatically turns off when low battery voltage detected.
• Enviromentally-friendly refrigerant R134a.
• Advertisement light box on top of refrigerator.

• Bright lamp inside with soft light.
• Security lock.
• Adjustable steel wire shelves.
• Double-glazed door, for good display effect.
• Door supporting trolley facilitates placing and moving
• Connects directly with DC power source  e.g. battery & solar panels.
• May be connected with AC power through an AC/DC adapter.
• High energy saving and low temperature loss design.

 Price: $2070



Trailblazer chest – type 12 & 24 volt Fridges & Freezers

The MOST efficient battery powered refrigerator – freezer available

The energy consumption of the Trailblazer units has been independently tested and verified by the Queensland University of Technology, and the World Health Organization.

     Vaccine Fridge/Freezer

Trailblazer chest freezer

All Trailblazers are manufactured from 2mm thick marine grade aluminium, inside and outside, and use Danfoss compressors.
All units are tested in controlled temperature ovens at 43 deg C.
Made in Australia for the world’s most demanding conditions
Ideal for rigorous camping, 4WD or fishing expeditions



Standard Models

CapacityDimensions (75 mm insulation)
(L x W x H)
Dimensions (125 mm insulation)
(L x W x H)
30 litre875 x 475 x 530
40 litre875 x 475 x 600
50 litre875 x 475 x 470975 x 575 x 520
60 litre875 x 475 x 530975 x 575 x 580
70 litre875 x 475 x 600975 x 575 x 650
80 litre875 x 475 x 655975 x 575 x 705
90 litre875 x 475 x 715975 x 575 x 765
100 litre875 x 475 x 775975 x 575 x 825
Power Consumption used as a fridge operating @ 2° C
ahr / day @ 25°ahr / day @ 35°ahr / day @ 45°
60 litre fridge (75 mm)
223246
70 litre fridge (75 mm)
24.235.250.6
80 litre fridge (75 mm)
26.438.455.2
90 litre fridge (75 mm)
28.641.659.8
100 litre fridge (75 mm)
30.844.864.4 y
60 litre fridge (125 mm)
16.724.335
70 litre fridge (125 mm)
18.426.738.5
80 litre fridge (125 mm)
2029.142
90 litre fridge (125 mm)
21.731.645.5
100 litre fridge (125 mm)
23.43448.9



Power Consumption used as a freezer operating @ – 12° C
ahr / day @ 25°ahr / day @ 35°ahr / day @ 45°
60 litre freezer (75 mm)
29.642.661
70 litre freezer (75 mm)
32.146.867.3
80 litre freezer (75 mm)
35.151.173.4
90 litre freezer (75 mm)
3855.379.5
100 litre freezer (75 mm)
4159.685.6
60 litre freezer (125 mm)
22.232.346.5
70 litre freezer (125 mm)
24.535.551.2
80 litre freezer (125 mm)
26.638.755.9
90 litre freezer (125 mm)
28.84260.5
100 litre freezer (125 mm)
31.145.265



Ute Models

CapacityDimensions (75 mm insulation)
(L x W x H)
Dimensions (125 mm insulation)
(L x W x H)
46 litre875 x 475 x 400975 x 575 x 425
75 litre875 x 575 x 460975 x 675 x 485
85 litre875 x 575 x 555975 x 675 x 605
95 litre875 x 575 x 600975 x 675 x 650
105 litre875 x 575 x 655975 x 675 x 705



Upright Models – 75 mm insulation

CapacityStandard
Dimensions (L x W x H)
Compact
Dimensions (L x W x H)
50 litre700 x 475 x 705540 x 510 x 770
60 litre700 x 475 x 765540 x 510 x 840
70 litre700 x 475 x 830540 x 510 x 915
80 litre700 x 475 x 890540 x 510 x 990
90 litre700 x 475 x 950
100 litre700 x 475 x 1005

Larger Models – 125 mm insulation – Two Compressors

CapacityDimensions (L x W x H)
125 litre1175 x 675 x 640, approx 70 kg
150 litre1175 x 675 x 730, approx 70 kg
175 litre1175 x 675 x 820
200 litre1175 x 675 x 910



Optional Accessories

Flush mounted dial thermometer
Additional thermostat (for ultra cold freezing)
Electronic thermostat
Flush mounted stainless steel voltmeter
Flush mounted voltmeter
240 volt ac power pack (for generator and mains power)
LED low voltage indicator alarm light
LED motor running indicator light



Vaccine Units – WHO approved

Trailblazer Vaccine Fridge/Freezer

Trailblazer Vaccine Fridge/Freezer

These cabinets have two compartments, a vaccine refrigerator and an ice-pack freezer.
They have two Danfoss BD35F compressors and a separate thermostat for each compartment, and are therefore suitable for ice-pack freezing in mild temperate situations through to very hot desert situations. Insulation is 125 mm polyurethane foam all round.



MODEL NRC 30-10 (WHO CODE E3/65-M)
30 litre fridge & 10 litre freezer
1050 x 625 x 750 high
Shipping weight 70 kg
MODEL NRC 120-30 (WHO CODE E3/92-M)
120 litre fridge & 30 litre freezer
1300 x 825 x 950 high
Shipping weight 140 kg

Other sizes and models also available. Ask for details.



Call us, we’ll help you to get the right model.
