Simax Solar Panels

Simax Solar Panels

SIMAX logo

Simax are reliable solar panels that we have been using for more than seven years. They are known for good performance and high output under most Australian conditions.

When we originally started using Simax Solar the biggest panel they made was 170 watts. Simax has recently introduced their 250 watt high efficiency solar panel to the Australian market. With the booming solar market, and high demand for quality solar panels, this has forced the solar manufacturers to produce solar panels with highest specifications and very economical pricing.

With 200 employees within less than a decade Simax solar has earned a good reputation for its high performance and economical solar panels. Simax Solar makes both Monocrystalline and Polycrystalline solar panels. The monocrystalline solar panels have cell efficiency from 15% to 17.53%. The 250 watt solar panels (SM660-250) have a cell efficiency of 17.53% with a positive power tolerance, and 4 bypass diodes, making them even more effective.

Simax solar offers a 12 year product warranty, along with 25 years performance warranty, comparing well with the rest of the industry. Simax have all the certification required to sell in Australian market.

All solar panels from Simax solar go through rigorous testing, to ensure that all the solar panels are suitable for the harsh Australian climate like rain, chemical etching and hail storms.

simax solar panels installation

Simax solar panels installed on tilt frame



As a long-standing retailer and installer of Simax, Solazone has full confidence that the 265 watt solar panel, with it’s higher efficiency and better specifications, will be appreciated by customers.



Simax 200 watt (SM572-200)

Great solar panels for 24 volt and 48 volt solar power systems with batteries.

Simax 200 Watt solar panel

Simax 200 Watt solar panel



Simax is designed and built to deliver highest efficiency and reliable power for grid connect residential and commercial systems worldwide.

Relying on Simax’s well-known stringent manufacturing stands and latest PV technology, the module SM572-200 provides the highest possible energy output per Watt.

Superior conversion rate and exceptional low-light performance enable it to deal with the most challenging conditions. The module is the perfect choice for those who demand outstanding performance and exceptional uniform appearance.

Specification sheet here



Simax Monocrystalline Solar Panels (SM660)

Simax 250 watt mono solar panel

Simax 250 watt mono solar panel



Certificate Number(s)Model Number/sCertifying BodyExpiry DateMeets new CEC T&C’s
Z2 15 10 84250 017SM660-250TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 017SM660-255TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 017SM660-260TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 017SM660-265TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 017SM660-270TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 017SM660-275TUV Sud GmbH26/05/2018Yes

Simax solar panel sm660-270-295w specifications

Simax SM660-250W solar panel is an excellent choice for environmentally friendly energy production. Its photovoltaic modules offer industry-leading performance, durability, and reliability for a variety of electrical power requirements. With a sturdy frame, a high quality finish and requiring simple installation, the Simax SM660-250W solar panel is a quality product and is a great investment for the future.

Superior conversion rate and exceptional low-light performance enable it to deal with the most challenging conditions. The module is the perfect choice for those who demand outstanding performance and exceptional uniform appearance.

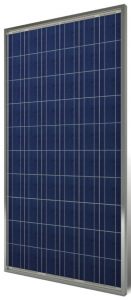

Simax Polycrystalline Solar Panels (SP660)



Simax-sp660 solar-panel

Simax-sp660 solar-panel

Certificate Number(s)Model Number/sCertifying BodyExpiry DateMeets new CEC T&C’s
Z2 15 10 84250 020SP660-250TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 020SP660-255TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 020SP660-260TUV Sud GmbH26/05/2018Yes
Z2 15 10 84250 020SP660-265TUV Sud GmbH26/05/2018Yes

 Simax-SP660-specifications here


Solazone also stock a range of discontinued Simax solar panels to assist customers with damaged solar panels from storms, accidents or lightning. The sizes we stock are 170 watt, 175 watt, 180 watt, 185 watt and 190 watt.

We currently sell the 200 watt model for 24 volt battery charging.



Simax Solar Panels

WeightSize (mm)
10w panel – ideal small charger for 12 volt batteries1.5 kg350 x 300 x 25
20w panel – ideal small charger for 12 volt batteries 2.5 kg655 x 300 x 25
40w panel – ideal charger for 12 volt batteries4.3 kg 610 x 510 x 35
60w panel – ideal charger for 12 volt batteries5.6 kg830 x 540 x 35
100w panel – ideal charger for 12 volt household batteries8.0 kg1200 x 540 x 35
150w panel – ideal charger for 12 volt household batteries12 kg1480 x 670 x 35
170w panel – for upgrades of older solar grid power systems15.0 kg1580 x 808 x 35
180w panel – for upgrades of older solar grid power systems15.0 kg1580 x 808 x 35
185w panel – for upgrades of older solar grid power systems15.0 kg1580 x 808 x 35
200w panel – recommended for 24v and 48v stand alone systems15.0 kg1580 x 808 x 50
270w MONO panel – used for grid and stand alone systems19.1 kg1640 x 992 x 40
265w POLY panel – used for grid and stand alone systems17.5 kg1640 x 992 x 40

Trade prices available for installers.

Order now, or ask a question:

Queensland:    (07) 5448 8304      qld at solazone.com.au

Victoria:            (03) 9808 7337      vic at solazone.com.au
