Solar Wall and Gable Ventilators

Solar Wall and Gable Ventilators



Small wall-mounted solar ventilators

Ideal for quietly injecting fresh air into, or removing stale air from rooms, and work spaces.

16w wall mount extraction fan

Small wall mount extraction fan

  • Solar extraction fan looks really neat in the wall.
  • Easily installed into most types of wall.
  • Fitted with adjustable louves to direct the flow.
  • Can be used for injecting fresh air into a room, or for extracting the stale air to the outside.
  • Easily install flexible duct, if need, up to six metres long.
  • Control with on-off switch, or adjustable thermostat.
  • Runs for free, all day, every day.
16w wall mount transfer fan

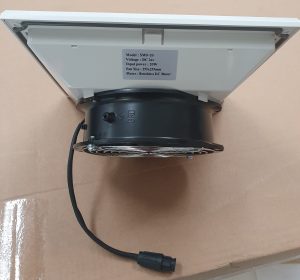

Rear of wall mount ventilation fan

Sometimes just a small Solar Ventilator is all that’s required,  and these solar ventilator models may be the answer.   Installation is a simple matter of making a hole in the wall, fitting the solar ventilator, connecting the remote solar panel (via a thermostat if needed), and it’s ready to go.  No electrician or builder is required for this.

Wall mounted extractor fan kit

Model shown is 10w metal fan with 20w solar panel.

There are three types of fan and motor.



 Specifications of Small Solar Ventilation Fan kits.

Kits contain ventilator fan with louvres, solar panel, adjustable wall-mounted thermostat, solar panel with adjustable mounting frame, and 5 metres of connecting wire.

 12v SOLAR

VENTILATOR kits

 BRONZE

8 watt 150mm

 SILVER

16 watt 150mm

GOLD

10 watt 200mm

 Airflow Up to 300 m3/hr Up to 470 m3/hr Up to 500 m3/hr
Suits duct size150mm150mm200mm
 Speed 1600 rpm 2300 rpm 000 rpm
 Current draw 0.7 amp 1.7 amp0.9 amp
 Noise level 40 dBA 43 dBA dBA
Solar panel18 watt35 watt20 watt
Kit Price$460 $540 $620

Extra 10m twin wire and 4 connectors $25.

30 metre roll of 4mm twin sheathed wire $67



Large wall or gable-mounted solar ventilators

For the larger jobs, big open areas, attics and roofs, or places with many people:

Two types –

 1.  Square, with white metal louvres:

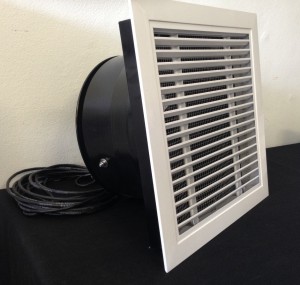

Large louvred solar ventilator

Large louvred solar ventilator

Just cut a large square hole in the wall (in-between studs) and insert the ventilator from inside the room.  Secure from the back, if needed.

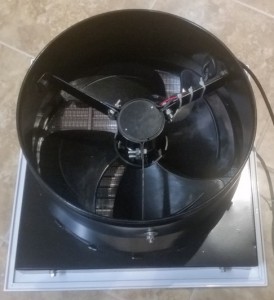

Back of 300mm ventilator fan

Back of 300mm ventilator fan

The fan body is slightly tapered from the 300mm opening, so any flexible duct can be pulled nice and tight.

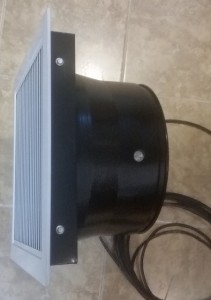

Side view of solar ventilator fan

Side view of solar ventilator fan

The solar panel wires are contained in a sheathed cable.

Fan Dimensions:  Required hole size: 360 x 360mm,  Louvred flange size: 400 x 400mm, depth: 220mm

Suitable for 300mm duct.



 2.  Round, with flange-mounting and plastic louvred safety cover:

Solar whiz gable mount ventilator SV3000

When no ducting is required, the flange-mounted solar ventilator may be the answer.

Again, installation is a simple.   Cut a hole in the wall, fit the solar ventilator fan, thermostat, and its louvred safety cover, and install the remote solar panel on a nearby roof or wall.   That’s all.   Set up and ready to go!

Gable mount ventilator fan safety cover

 Fan Dimensions:  Required hole diameter: 300mm, flange diameter: 500mm, depth: 200mm



 Specifications of Large Solar Wall Ventilation Fan Kits.

Kits contain ventilator fan and safety cover, or louvres, solar panel, adjustable wall-mounted thermostat, solar panel with adjustable mounting frame, and 5 metres of connecting wire.

Fan modelWhite louvred squareFlange SW-RAF900GFlange SW-RAF1400GFlange SW-RAF2100G
 12 volt25 w 300mm10 watt 300mm15 watt 300mm25 watt 300mm
 AirflowUp to 1200 m3/hrUp to 900 m3/hrUp to 1400 m3/hrUp to 2100 m3/hr
 Speed 1000 rpm1000 rpm1000 rpm1000 rpm
 Current draw2.1 amp0.85 amp1.25 amp2.1 amp
 Noise level40 dBA dBA dBA40 dBA
Solar panel35 watt10 watt20 watt35 watt
Kit Prices$820$620$695$800

Flanged fans are supplied with a Gable Ventilator Safety Cover  ( 22″ diameter plastic, with louvres + fly screen)

Extra 10m twin wire and 4 connectors $25.

30 metre roll of 4mm twin sheathed wire $67



Adjustable Thermostats

Adjustable thermostat

Adjustable thermostat

  • Using the thermostat, you can control exactly when the Solar Ventilator will operate – only when the temperature exceeds your preset limit.
  • This means that if your set temperature is exceeded during summer, the hot air is extracted from the room, but during winter the thermostat can be set to retain the heat, and help keep the house warm.
  • Very simple adjustment – just turn the knob.
  • Use the convenient on-off swich if needed.
  • Included in each kit.



Get a copy of my book for free here:

Cooling your home for free book

Cooling your home for free book

https://gumroad.com/l/uGmfH





Order here – for fast delivery to anywhere in Australia.
