Vertical Axis Wind Turbines

High Quality Vertical Axis Wind Turbines



Red Spiral Vertical Wind Turbines

Better, lighter, quieter, cheaper, and long-lasting.

Standard sizes are 50 watt up to 400 watt.



These work well with any 12, 24 or 48 volt battery systems, and may be connected to grid battery back-up, using one of our grid-battery inverters.

eg.  via Selectronic Sp Pro, Latronics PV Edge, Goodwe ES solar inverters, or Goodwe BP battery power device.



Spiral 300 watt wind generatorSpiral 100w wind generator

Models available:

ModelRSV-50RSV-100RSV-200RSV-300RSV-400RSV-500
Rated power50 w100 w200 w300 w400 w500 w
Maximum power55 w130 w220 w310 w410 w550 w
Rated voltage12 / 2412 / 2412 / 2412 / 24 / 4812 / 24 / 4812 / 24 / 48
Start up wind speed1.5 m/s1.5 m/s1.5 m/s2 m/s2 m/s2 m/s
Rated wind speed11 m/s11 m/s11 m/s11 m/s11 m/s11 m/s
Survival wind speed45 m/s45 m/s45 m/s45 m/s45 m/s45 m/s
Top net weight 12 kg14 kg15 kg22 kg25 kg
Wheel diameter 470 mm470 mm470 mm660 mm660 mm540 mm
Height780 mm960 mm1105 mm1220 mm1450 mm
Blades number810121012
Blades materialAluminum alloy
GeneratorThree phase permanent magnet ac generator/ maglev generator
Control systemElectromagnet
Speed regulationAutomatically windward
Working temperature-40ºc ~ 80ºc
 Prices June 2017$989$1030$1110$1345$1485$1680

All Red Spiral Wind Generators are supplied with a quality regulator that displays all functions, including battery voltage and charge current.

Note: Assembled units available for pick up at our Melbourne store only.

Unassembled units can be shipped to any destination in a solid plywood box for self-assembly.

Assembly instructions are included in the box, or are available on request.

Delivery times vary, depending upon stock at hand, and can take up to four weeks for some sizes.



Q4 Series Vertical Wind Turbine

Q4 Vertical Wind Generator

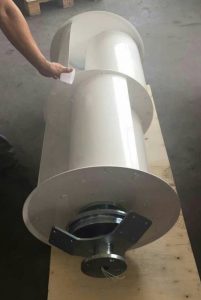

White RQ4 Vertical Wind Generator

  1. This wind generator has low start up speed; high wind energy utilization; beautiful appearance, and low vibration.
  2. It features creative simple design, easy installation, maintenance and repair.
  3. The blades are strong with an optimized aerodynamic contour and structure, the blades have high utilization of wind energy, which contributes to the high annual energy output.
  4. The wind generator has a patented permanent magnet rotor alternator,with a special kind of stator design that efficiently decreases resistance torque. It makes the wind generator speed match the generator quite well, and increase its reliability.
  5. Includes quality hybrid charge controller, with digital display showing all instantaneous readings, including battery charge voltage and current being generated. (see details below)
  6. Fully assembled and factory tested, before being carefully packed in a plywood crate, with expanded foam packaging for protection.
  7. Clear and understandable owners manual, detailing installation and safety procedures.
  8. One year’s warranty on both wind generator and controller.  Extended warranty may be purchased at point of sale.



Q4 vertical axis wind generators ready for dispatch

Q4 vertical axis wind generators ready for dispatch

ModelRQ4-300RQ4-400RQ4-500RQ4 – 600RQ4-1000
Rated Power300 w400 w500 w600 w1 kw
Maximum power310 w410 w510 w310 w
Voltage12 / 2412 / 24 2424 /48 v24 /48 v
Start up wind speed1.5 m/s1.5 m/s1.5 m/s1.5 m/s2.5 m/s
Rated wind speed11 m/s11 m/s12 m/s11 m/s12 m/s
Weight25 kg25 kg27 kg90 kg200 kg
Diameter370 mm370 mm370 mm580 mm
Height1000 mm1000 mm1000 mm1600 mm2300 mm
Number of blades 4
Generator3 phase permanent magnet AC generator / maglev generator
Prices – June 2017$1735 $1800 $1890 $2475 $4775

Solazone Q4 wind generator manual

Download Solazone Q4 300 – 600w Vertical Wind Generator Manual here



H Series Vertical Wind Turbine

Vertical axis wind turbine

Vertical axis wind turbine

X-H series vertical wind turbine system is one of the most successful vertical wind generator system in the world.

The main advantages of this vertical wind turbine are:
1) Very quiet, very low rotational speed.
2) Extremely low start-up torque, good output in low breeze wind conditions.
3) Safe in strong wind conditions.
4) Reliable and durable.

Features & Technology:

These wind turbines feature advanced technology to improve performance and durability.  Here are some of the features

1. Generator:

Vertical turbine generator

Vertical turbine generator

We use the strongest magnets
(Neodymium Iron Boron Magnets) and most
advanced technology for our motor. Experiments
show that the Neodymium Iron Boron Magnet is
lighter in weight and more efficient than any other
material. And our rotor tangential structure design
also contributes to the whole motor superiority.
Use special electromagnetic technology to make
the generator have extremely low start-up drag
torque, which can make sure the VAWT start-up in
the gentle breeze.

2. Wind turbine blades
Using high strength glass fiber reinforced plastic
and epoxy resin materials. The wind rotor operate
very stably and quietly.
With our technology on fluid dynamics and
aerodynamics, together the adoption of European
advanced design idea, our blades are recognised
for good start up performance and higher output
than competitors. Besides, aerodynamic design
makes our wind turbines more effective.
Derodynamic design also contributes to this super low noise.

h-series wind generator

h-series wind generator

3. Double Security System:
All our wind turbines are equipped by two security systems. If wind is too strong,
the system will active its overspeed protection, using machinery limited speed
and electromagnetic brake.
To conclude, good quality, reliable performance and long time durability are our
main concerns. Most of all, we produce good quality products, at an affordable
price for all our customers.

Frequent asked questions:

1) What kinds of place is good to install this wind generator ?
A good place should meet with two basic requirements: the higher average wind speed and the weaker turbulence. The average wind speed is higher, the generated power is higher and the generator will generate more electricity.   (For example, the wind speed of 5m/s can generate nearly twice more electricity than that of the wind speed of 4m/s.)

2) Do we need routine maintenance after installation ?
X-H series vertical wind turbines have been designed to provide you with free and clean energy for many years. Even though our turbines are made to be maintenance-free we recommend regular check-ups to monitor the general condition of the system, ensure electrical and mechanical integrity and safety of the system.

1000w-wind-generator-vertical-axis

1000w-wind-generator-vertical-axis

  1. This wind generator has a low start up speed; high wind energy utilization; beautiful appearance, and low vibration.
  2. It features creative simple design, easy installation, maintenance and repair.
  3. The blades are strong with an optimized aerodynamic contour and structure, the blades have high utilization of wind energy, which contributes to the high annual energy output.
  4. The wind generator has a patented permanent magnet rotor alternator,with a special kind of stator design that efficiently decreases resistance torque. It makes the wind generator speed match the generator quite well, and increase its reliability.
  5. Includes quality hybrid charge controller, with digital display showing all instantaneous readings, including battery charge voltage and current being generated. (see details below)
  6. Fully factory tested, before being carefully packed in a plywood crate, with expanded foam packaging for protection.
  7. Clear and understandable owners manual, detailing installation and safety procedures.
  8. One year’s warranty on both wind generator and controller.  Extended warranty may be purchased at point of sale.



Five Blade Vertical 3-phase permanent magnet, special maglev ac generator

ModelRH300RH500RH600RH1KRH2KRH3KRH5KRH10KRH20K
Rated Power300 w500 w600 w1 kw2 kw3 kw5 kw10 kw20 kw
Max Power315 w515 w610 w1.2 kw2.2 kw3.5 kw5.5 kw12 kw23 kw
Voltages12 / 24 v12 / 24 v48 v48 v48 / 96 v96 / 120 v120 / 220 v360 v360 v
Start up speed2 m/s2 m/s2 m/s2 m/s2 m/s2 m/s2 m/s2.5 m/s2.5 m/s
Rated speed12 m/s12 m/s12 m/s12 m/s12 m/s12 m/s12 m/s12 m/s12 m/s
Diameter1.6 m1.8 m2.2 m2.55 m2.85 m3.6 m5.8 m7.6 m
Height1.8 m2 m2.4 m3 / 2.6 m3.5 / 3 m4.5 / 4 m8 / 6 m10 / 9 m
Blade MaterialAluminiumFibreglassAluminium
PricesJun2017$1700 $1935 $2150$3988 $5880$12198$18,075$30,000 $58,000

Prices include wind generator and controller only.  Tower sold separately, suitable for each application, or build locally.



Details of the Wind Turbine Charge Controllers that are included:

Wind / solar hybrid street light controller, for up to 2 kw.

wind generator charge controller

The wind/solar hybrid street light controller is an intelligent apparatus which is specially designed for high-end small-scale wind/solar hybrid systems, and especially suitable for wind/solar hybrid street light system, and wind/solar hybrid monitoring system.   It can simultaneously control a wind turbine and solar panels to charge a battery safely and efficiently.   With neat appearance, easy operation, visual LCD display and many protection functions, the apparatus has high charge efficiency, and low no-load loss.   The system operation will be safe, stable and reliable.   With high value performance and a long life-span, it has already been widely accepted.    The wind/solar hybrid street light controller is the most critical part in off-grid street lighting systems, and it’s performance affects the longevity and stability of the whole system, especially the life of the battery.

 Performance Description

 Reliability: Intelligent, modular design, simple mechanism, powerful functions. With industrial range superior components and strict production technology, the controller can be used in relatively bad working environment and has reliable performance and long life-span.

 PWM Stepless Dumpload Mode: When the power generated by wind turbine and solar panel exceed battery capacity, the controller will release residual power. Common control mode is to dumpload all the power. However, the battery is not full actually. That all the power was consumed via resistors makes resource tremendously wasteful. Even with staging dumpload, it can be just divided into five to six stages, the effect is still unsatisfied. Our company adopts PWM (Pulse Width Modulation) stepless dumpload mode. In another word, the controller can dump residual power with division into thousands of stages. It can dump residual power while charging battery banks, which is benefit to effectively extend battery longevity.

 Voltage Limiting and Current Limiting Charge Mode: When battery voltage exceeds the pre-set dumpload voltage point, the controller will adopt PWM voltage limiting charge mode. It dumps the excess energy in order to extend the battery longevity. When wind turbine charging current exceeds pre-set brake current point, the controller will automatically start brake to protect battery. (e.g.: WWS06-48-N: If battery voltage exceeds charge shutoff voltage or wind turbine current exceeds wind turbine brake current, the controller will automatically start brake.)

Wind charger controller connection terminals

Wind charger controller connection terminals

 Two DC Outputs Mode: Each DC output has various control modes for choice, including: Constant on; Constant off; Constant half-power; light-control on, light-control off; light-control on, time-control off; light-control on, time-control half-power, light-control off; light-control on, time-control half -power, time-control off. Users can set three output control modes by LCD buttons: constant on; light-control on, light-control off; light-control on, time-control off.

wind charge controller display

wind charge controller display

 LCD Display Function:   The LCD screen displays system status and parameters via both digital and graphic forms.   Displayed are: battery voltage, wind turbine voltage, PV voltage, wind turbine current, PV current, wind turbine power, PV power, load current, output control.

Wind generator controller Model Specifications

Wind generator controller Model specifications



For larger model wind turbines, over 2 kw:

large-wind-controller

This advanced wind/solar hybrid controller is specially designed for high-end small-scale wind/solar hybrid systems, and is especially suitable for wind/solar hybrid power generation system systems, and as a wind/solar hybrid monitoring system.    It can simultaneously control a wind turbine and solar panels on the same battery, offering safe and efficient charging.

The controller adopts PWM to control both wind turbine and solar panel charging of the battery, with both voltage limiting and current limiting; namely, the controller will charge the battery with current limiting when the battery power is low, and charge the battery with voltage limiting when the battery power is high.

  • When the total charge current of the wind turbine and solar panels is lower than the current limiting point, the controller will charge the battery with the whole of the power generated by the wind turbine and solar panels.    However, when the total charge current of the wind turbine and solar panels is more than current limiting point, the controller will charge the battery only up to the current limiting point, the excess energy being unloaded by PWM.
  • When the battery voltage is lower than the voltage limiting point, the controller will charge the battery with the whole of the power generated by the wind turbine and solar panels.   As the battery voltage climbs up to the voltage limiting point, the controller will only charge battery up to the voltage limiting point, and the excess power will be unloaded by PWM.

For specific wind turbines, the controller can achieve accurate speed control, namely, you can set the stop rotation speed.    When the wind turbine exceeds this speed, the controller will stop the wind turbine working, and the controller will not run the wind turbine for 10 minutes.

The controller has an LCD module especially designed for wind/solar hybrid system display.    The LCD can display battery voltage, wind turbine voltage, PV voltage, wind power, PV power, wind turbine current, PV current and battery power status.   Users can browse the parameters through the four keys of LCD.

The controller is equipped with dedicated remote monitoring software.   The software can monitor system status in real-time, such as battery voltage, wind turbine voltage, solar battery voltage, battery charging current, wind turbine charging current, solar charging current, battery charging power, solar charging power, wind turbine charging power, fan speed and so on.   The software can configure and modify the system parameters, and the software can control the operation of the wind turbine and the load.

In addition, the controller has built-in protection functions, including: solar panel reverse charging, solar cells anti-reverse, battery over charge, battery anti-reverse, lightning protecting, wind turbine current limiting, wind turbine automatic brake and manual brake.
