SMA Sunny Island battery/grid inverters
SUNNY ISLAND – The flexible System manager
The Sunny Islands offer you first class possibilities in the installation of self-sufficient energy systems. In conjunction with a battery pack the devices form a self-sufficient AC voltage grid, which meets with the highest of quality standards.
In the Sunny Island System, electricity generators and consumers are integrated in equal measure. PV and wind energy systems, diesel devices, water or CHP (Combined Heat and Power) can be coupled on the AC side just as conventional 230 Volt consumers. Thus the Sunny Islands offer you two decisive advantages: at system planning and layout you can enjoy the highest degree of flexibility, during installation the complex DC cabling is not required.

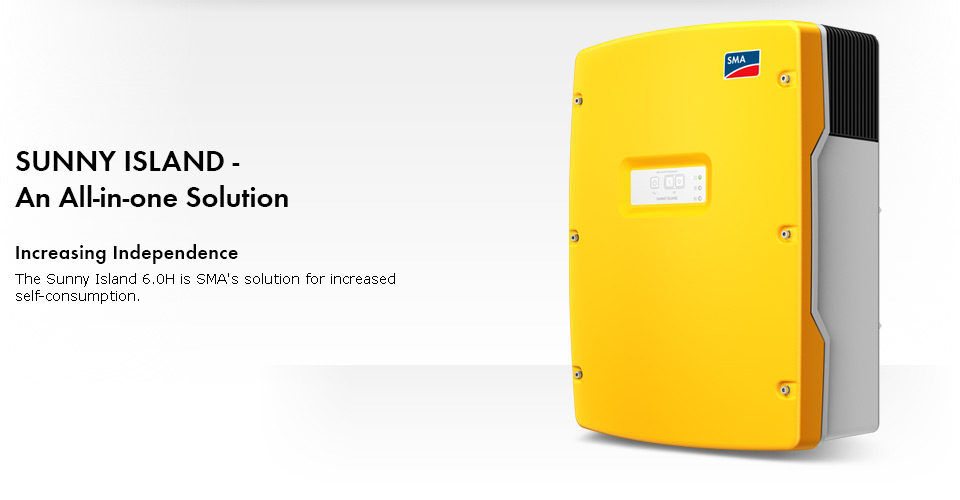

Sunny Island 6.0 / 8.0
Simple. Robust. Flexible.
More robust than its predecessors: The new Sunny Island impresses with its high protection class and wide temperature range. Moisture, dust and temperature fluctuations won’t impair its operation, even after 20 years. Thanks to OptiCool, there’s no need to compromise when it comes to overload capacity and profitability. And there’s more: OptiPower, the intelligent load and energy management system, ensures operation even in critical situations. OptiUse makes installation, commissioning and daily use easier than ever with automatic rotary field detection, an optimized quick configuration guide and intuitive operation. And the OptiBat battery management system automatically controls the most important charging and discharging procedures, which extends the service life of sensitive energy storage. Sunny Island is a truly comprehensive package for a worry-free, reliable and self-sufficient electricity supply.
The new Sunny Island impresses with its high protection class and wide temperature range. Moisture, dust and temperature fluctuations won’t impair its operation, even after 20 years. Thanks to OptiCool, there’s no need to compromise when it comes to overload capacity and profitability. And there’s more: OptiPower, the intelligent load and energy management system, ensures operation even in critical situations. OptiUse makes installation, commissioning and daily use easier than ever with automatic rotary field detection, an optimized quick configuration guide and intuitive operation. And the OptiBat battery management system automatically controls the most important charging and discharging procedures, which extends the service life of sensitive energy storage. Sunny Island is a truly comprehensive package for a worry-free, reliable and self-sufficient electricity supply.
| Sunny Island 6.0H | Sunny Island 8.0H | |
| AC output (loads / stand-alone grid) | ||
| Rated line voltage / AC voltage range | 230 V / 202 V … 253 V | 230 V / 202 V … 253 V |
| Rated frequency / frequency range (adjustable) | 50 Hz / 45 Hz … 65 Hz | 50 Hz / 45 Hz … 65 Hz |
| Rated power (for Unom, fnom / 25 °C / cos φ = 1) | 4600 W | 6000 W |
| AC power at 25 °C for 30 min / 5 min / 3 sec | 6000 W / 6800 W / 11000 W | 8000 W / 9100 W / 11000 W |
| Rated current / maximum output current (peak) | 20 A / 120 A | 26 A / 120 A |
| Total harmonic distortion output voltage / power factor with rated power | < 4 % / -1 … +1 | < 4 % / -1 … +1 |
| AC input (PV array, grid or MC-Box) | ||
| Rated input voltage / AC input voltage range | 230 V / 172.5 V … 264.5 V | 230 V / 172.5 V … 264.5 V |
| Rated input frequency / allowable input frequency range | 50 Hz / 40 Hz … 70 Hz | 50 Hz / 40 Hz … 70 Hz |
| Maximum AC input current / adjustable | 50 A | 50 A |
| Maximum AC input power | 11500 W | 11500 W |
| Battery DC input | ||
| Rated input voltage / DC voltage range | 48 V / 41 V … 63 V | 48 V / 41 V … 63 V |
| Maximum battery charging current / DC rated charging current | 110 A / 100 A | 140 A / 115 A |
| Battery type / battery capacity (range) | FLA, VRLA / 100 Ah … 10 000 Ah |
FLA, VRLA / 100 Ah … 10 000 Ah |
| Charge control | IUoU charging process with automatic full and equalization charge | IUoU charging process with automatic full and equalization charge |
| Efficiency / self-consumption | ||
| Maximum efficiency | 95 % | 95 % |
| Self-consumption without load / standby | < 26 W / < 4 W | < 26 W / < 4 W |
| Protective device (equipment) | ||
| AC short circuit / AC overload | yes / yes | yes / yes |
| DC reverse polarity protection / DC fuse | – / – | – / – |
| Overtemperature / battery deep discharge | yes / yes | yes / yes |
| Overvoltage category as per IEC 60664-1 | III | III |
| General data | ||
| Dimensions (width x height x depth) | 467 mm x 612 mm x 242 mm | 467 mm x 612 mm x 242 mm |
| Weight | 63 kg | 63 kg |
| Operating temperature range | -25 °C … +60 °C | -25 °C … +60 °C |
| Protection class according to IEC 62103 | I | I |
| Climatic category according to IEC 60721 | 3K6 | 3K6 |
| Degree of protection according to IEC 60529 | IP54 | IP54 |
| Features / function | ||
| Operation and display / multifunction relay | external with SRC-20 / 2 | external with SRC-20 / 2 |
| 3-phase systems / parallel connection | yes / yes | yes / yes |
| Integrated bypass / multicluster operation | – / yes | – / yes |
| State of charge calculation / full charge / equalization charge | yes / yes / yes | yes / yes / yes |
| Integrated soft start / generator support | yes / yes | yes / yes |
| Battery temperature sensor / communication cables | yes / yes | yes / yes |
| Certificates and approvals | www.SMA-Solar.com | www.SMA-Solar.com |
| Warranty (5 / 10 / 15 / 20 / 25 years) | yes / opt. / opt. / opt. / opt. | yes / opt. / opt. / opt. / opt. |
| Accessories | ||
| Battery cable / battery fuse | opt. / opt. | opt. / opt. |
| Interface SI-COMSMA (RS485) / SI-SYSCAN (Multicluster) | opt. / opt. | opt. / opt. |
| Extended generator start “GenMan” | opt. | opt. |
| Load-shedding contector / battery current measurement | opt. / opt. | opt. / opt. |
| Type designation | SI6.0H-10 | SI 8.0H-10 |
Sunny Remote Control
The SMA Sunny Remote Control makes SMA off grid solar photovoltaic systems using SMA Sunny Island and SMA Sunny Backup even more flexible. The SMA Sunny Remote Control maximizes the ease of installation by moving the control unit to the outside of the inverter. With the SMA Sunny Remote Control, you can commission and monitor the SMA Sunny Island and SMA Sunny Backup conveniently without standing right in front of the inverter. The SMA Sunny Remote Control SRC-20 can be used at a distance of up to 20 meters and processes information from up to three inverters. The rotary switch allows intuitive operation. The four-line display gives you clearly arranged information on the current plant status at one glance. An SD card serves as the service interface for the inverter which adds to the simplicity of installing the SMA Sunny Remote Control SRC-20. Just one cable is needed for the electrical connection and communication. Plug it in at both ends – and there you are.
Flexible
Control and visualization unit
Usable from a distance of up to 20 meters
Wall mounting or top-hat rail installation
For use with SMA off-grid solar systems which include the following SMA Inverters:
Simple
Just one cable for power supply and communication
Intuitive operation via rotary switch
Just one SMA Sunny Remote Control SRC-20 per cluster
Communicative
Four-line display
SD card as service interface
Sunny Island Charger 50
DC Coupling from SMA: Now with 20 % More Power
Nominal DC power up to 40 °C: 600 W / 1200 W / 2400 W
AC and DC coupling in perfect interaction and from a single manufacturer: The all-purpose Sunny Island Charger 50 by SMA. Its broad DC input voltage range makes configuration possible for almost any PV module. Thanks to the integrated MPP tracking system, the charger guarantees an energy output between 15 to 30 % higher than that of conventional shunt charge controllers. Unique in charge controllers of this power range: The high protection class, fanless operation and broad temperature range enable its use even under extreme climatic conditions. Easy installation and automatic control through the Sunny Island make commissioning entirely foolproof.
- Nominal battery voltage: 12 V / 24 V / 48 V
- Max. DC voltage: 140 V DC
| S I Charger 12 V | S I Charger 24 V | S I Charger 48 V | |
| Input (PV array) | |||
| Max. PV power | 630 W | 1250 W | 2400 W |
| Max. DC voltage | 140 V DC | 140 V DC | 140 V DC |
| Optimum MPPT voltage range | 25 V – 60 V | 40 V – 80 V | 70 V – 100 V |
| Number of MPP trackers | 1 | 1 | 1 |
| Max. PV current | 40 A | 40 A | 40 A |
| Output (battery) | |||
| Nominal DC power up to 40 °C | 600 W | 1200 W | 2400 W |
| Nominal battery voltage | 12 V | 24 V | 48 V |
| DC Voltage range (adjustable) | 8 V – 15.6 V | 16 V – 31.5 V | 36 V – 65 V |
| Battery type | Sealed and vented lead-acid batteries | Sealed and vented lead-acid batteries | Sealed and vented lead-acid batteries |
| Max. charging current | 50 A | 50 A | 50 A |
| Continuous charging current | 50 A | 50 A | 50 A |
| Charge control | IUoU | IUoU | IUoU |
| Efficiency | |||
| Max. efficiency | 98 % | 98 % | 98 % |
| Europ. efficiency | 97.3 % | 97.3 % | 97.3 % |
| Protection | |||
| DC reverse polarity | yes | yes | yes |
| Short-circuit current capability | yes | yes | yes |
| Overload protection | yes | yes | yes |
| Overvoltage protection and low-voltage protection | yes | yes | yes |
| Overtemperature protection and low-temperature protection | yes | yes | yes |
| General data | |||
| Dimensions (W / H / D) | 421 / 310 / 143 mm | 421 / 310 / 143 mm | 421 / 310 / 143 mm |
| Weight | 10 kg | 10 kg | 10 kg |
| Degree of protection (according to IEC 60529) | IP65 | IP65 | IP65 |
| Operating temperature range | -25 °C … +60 °C | -25 °C … +60 °C | -25 °C … +60 °C |
| Humidity | 0 % … 100 % | 0 % … 100 % | 0 % … 100 % |
| Self-consumption by day / night | < 5 W / < 3 W | < 5 W / < 3 W | < 5 W / < 3 W |
| Features / function | |||
| Display | Multicolor LED | Multicolor LED | Multicolor LED |
| Parameter confi guration | Plug & Play in combination with SI5048, SI2224, SI2012 (Sync Bus Piggy Back required), DIL switch with stand-alone applications | Plug & Play in combination with SI5048, SI2224, SI2012 (Sync Bus Piggy Back required), DIL switch with stand-alone applications | Plug & Play in combination with SI5048, SI2224, SI2012 (Sync Bus Piggy Back required), DIL switch with stand-alone applications |
| Parallel operation | Up to 4 devices | Up to 4 devices | Up to 4 devices |
| Interface: Sync Bus Piggy-Back | opt. | opt. | opt. |
| External temperature sensor (type KTY) | opt. | opt. | opt. |
| Warranty (5 / 10 / 15 / 20 / 25 years) | yes / opt. / opt. / opt./ opt. | yes / opt. / opt. / opt./ opt. | yes / opt. / opt. / opt./ opt. |
| Certificates and approvals | CE | CE | CE |
Multicluster Boxes for Sunny Island 5048
For Easy Set-Up of Stand-Alone and Hybrid Systems
Nominal power at 25 °C: 30 kW / 60 kW / 180 kW
The Multicluster Boxes for Sunny Island 5048 enable the formation of off-grid and hybrid systems with a capacity of between 30 and 300 kW. As the main AC distribution for the connection of generators and to supply loads of up to 300 kW, between two and 12 three-phase clusters, each consisting of three Sunny Island inverters, can be connected in parallel using the Multicluster Box. To simplify installation, all Multicluster Boxes are completely wired and fitted at the factory and have a main connector for PV plants or wind turbine systems. All communication cables required for the installation are included in the delivery.
>> Nominal AC voltage: 3 x 230 V
>> Three different power ranges from 30 kW to 300 kW
>> Different generators, PV and load magnitudes
Integrated AC distribution for Sunny Island, generator, PV
>> Integrated load-shedding contactor
Automatic bypass for the generator
>> Active Anti-Islanding
>> Reverse current monitoring
High protection class IP65
>> 5-year SMA warranty
| SUNNY ISLAND 5048 Multicluster-Box 6 |
SUNNY ISLAND 5048 Multicluster-Box 12 |
SUNNY ISLAND 5048 Multicluster-Box 36 |
|
| General | |||
| Phase number | 3-phase | 3-phase | 3-phase |
| Nominal AC voltage | 230 V (LN), 400 V (L1, L2) | 230 V (LN), 400 V (L1, L2) | 230 V (LN), 400 V (L1, L2) |
| AC voltage range | 172.5 V – 265 V 300 V – 433 V | 172.5 V – 265 V 300 V – 433 V | 172.5 V – 250 V 300 V – 433 V |
| Nominal AC frequency / range | 50 Hz / 40 Hz … 70 Hz | 50 Hz / 40 Hz … 70 Hz | 50 Hz / 40 Hz … 70 Hz |
| Reliable grid confi guration | TN | TN | TN |
| Dimensions (W / H / D) | 760 / 760 / 210 mm | 1000 / 1400 / 300 mm | 1200 / 2000 / 800 mm |
| Assembly type | Suspended | Standing on base | Standing on base |
| Weight | 60 kg | 140 kg | 400 kg |
| Terminals for Sunny Island | |||
| Maximum number of devices | 6 | 12 | 36 |
| Nominal AC power / nominal AC current at 25 °C | 30 kW / 3 x 44 A | 60 kW / 3 x 87 A | 180 kW / 3 x 260 A |
| Nominal AC power / nominal AC current at 45 °C | 24 kW / 3 x 35 A | 48 kW / 3 x 70 A | 144 kW / 3 x 209 A |
| AC power (25 °C, 30 minutes) | 40 kW | 80 kW | 234 kW / 3 x 340 A |
| AC power (25 °C, 1 minute) | 50 kW | 100 kW | 300 kW / 3 x 440 A |
| Fuses | Miniature circuit-breaker C 32A | Miniature circuit-breaker C 32A | Miniature circuit-breaker C 32A |
| Load connection | |||
| Number | 1 (3-phase) | 1 (3-phase) | 1 (3-phase) |
| Nominal AC power (25 °C, unlimited) | 55 kW | 110 kW | 300 kW |
| Nominal AC current (25 °C) | 3 x 80 A | 3 x 160 A | 3 x 435 A (AC1) |
| Fuses | LV / HRC (size 00) | LV / HRC (size 00) | LV / HRC (size 3) |
| PV plant connection | |||
| Number | 1 (3-phase) | 1 (3-phase) | 1 (3-phase) |
| Nominal AC power (25 °C, unlimited) | 55 kW | 110 kW | 300 kW |
| Nominal AC current (25 °C) | 3 x 80 A | 3 x 160 A | 3 x 435 A (AC1) |
| Fuses | — | — | — |
| Generator connection | |||
| Number | 1 (3-phase) | 1 (3-phase) | 1 (3-phase) |
| Nominal AC power (25 °C, unlimited) | 55 kW | 110 kW | 300 kW |
| Nominal AC current (25 °C) | 3 x 80 A | 3 x 160 A | 3 x 435 A (AC1) |
| Fuses | LV / HRC (size 00) | LV / HRC (size 00) | LV / HRC (size 3) |
| Features | |||
| Warranty (5 / 10 / 15 / 20 / 25 years) | yes / opt. / opt. / opt. / opt. | yes / opt. / opt. / opt. / opt. | yes / opt. / opt. / opt. / opt. |
| Certificates | CE | CE | CE |
| Ambient conditions | |||
| Ambient temperature | -25 °C … +50 °C | -25 °C … +50 °C | -25 °C … +60 °C |
| Degree of protection (according to IEC 60529) | IP65 | IP65 | IP54 |
| Humidity | 0 % … 100 % | 0 % … 100 % | 0 % … 100 % |
| Accessories | |||
| Communication lines | yes | yes | yes |
| Multicluster Piggy-Back | opt. | opt. | opt. |
Smart Load for Sunny Island
Intelligent Dump Load for Stand-Alone Grids
Smart Load for Sunny Island
The Smart Load is an electronic control for load resistors up to 6 kW from Critical Power Supplies optimized for the operation in Island grid systems with energy sources that only have a slow control or none at all Single phase or 3 phase input IP65
Intelligent dumpload for stand-alone grids
The Smart Load forms the perfect complement to unregulated energy generators in stand-alone grids, e.g., small, directly-connected wind generators with passive stall power control. If there is an electricity surplus, the Smart Load feeds it into special loads, for example, heating cartridges in a hot water tank. The necessary arrangement is completely automatic, fast and free of retroactive effects for other loads. This continuous and quick energy consumption allows for ideal protection of system components and guarantees increased reliability.
Flexible
>> For use from 45 to 65 Hz
>> Can be connected in parallel
>> Suitable for 1- and 3-phase operation
Simple
>> Ideal complement for energy sources without active power control
>> Easy installation and commissioning
Safe
>> Minimized AC interference emission thanks to phase shift control
>> Integrated power and frequency control
Robust
>> IP65 high protection rating
>> 5-year SMA Warranty
