Wood Stove Fan

Providing the world’s best Wood Stove Fans

17 redenen om yoga te beoefenen – fisiosite blogfisiosite blog sustanon kopen vrijetijdsbroek voor heren | site broek.
Choose from our 2023 range of higher-performance models:

1. Large Stovetop Fan – our most popular model

  • This amazing heat-powered Wood Stove Fan distributes heat right across your room.
  • It uses no power at all, just the heat from the stove itself.
  • The hotter the stove, the faster the stove fan spins!
  • The faster it spins, the further it pushes the warm air across your room.



Solazone NEAT-864 Wood Stove Fan

Solazone NEAT-864 Wood Stove Fan

What will I feel?

Have you ever been in a room beside a glowing wood heater, and found yourself moving closer and closer towards the heater until you are right next to the heater?

As you toast away, you don’t feel like moving because feels is too cold away from the fire.  Sitting beside the heater is really toasty.

Well, you can fix that problem of uneven heat across the room with this little stove fan, that just sits on top of the stove, and works all by itself!

Starting at just 50oC it will start to gently blow heat right across the room.   Soon, every part of the room feels comfortably warm, and not just around the fire.  Then you will feel like doing stuff.

Solazone Heat-powered stove fan

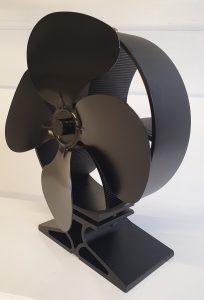

Solazone Wood Stove Fan side viewSolazone Wood Stove Fan side view

Solazone Wood Stove Fan side view

How does it work?

It works totally silently (<25dB), uses no power, and runs whenever the stove gets hot.

As the stove gets warmer, the Wood Stove Fan runs faster and faster, moving the heat across to the far corners of the room.   The great thing is, there are no dangerous leads, or cords to melt or burn.   And even at top speed, there is hardly a whisper.   It’s almost totally silent.  (The stove fan makes less than 25 dB even going hard).



Notice the warmth difference in a room with a Solazone Wood Stove Fan operating.

Notice the warmth difference in a room with a Solazone Wood Stove Fan operating.

With large 180mm diameter black high-efficiency blades – the Solazone NEAT-864 model shifts lots of air – up to 250 cfm.



What is the secret to its success?

A compact thermal-electric unit that generates the tiny power used to run the fan, from heat conducted up from the base.

How does it work?  No batteries, no plugs, just place it on the hot stove, and off it goes!

wood stove thermoelectric

Picture of the thermoelectric element that powers the Wood Stove Fan

“I am surprised at the difference this little fan makes to cold corners of the room, that are quite a distance from the wood heater”

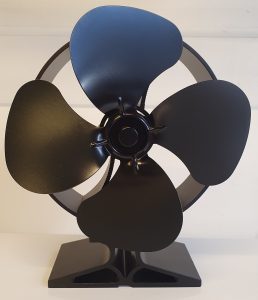

Solazone Wood Stove Fan front view

New Solazone Wood Stove Fan front view

You will notice the difference in terms of how far the heat is directed across the room.



Will I still need to dry laundry right in front of the wood heater?

Not anymore.   You can air damp clothes much further away from the wood heater, and they will still dry quickly and evenly.



Where do I get the best performance from my Wood Stove Fan?For maximum stove fan efficiency

Keep the Wood Stove Fan at least 100 mm away from the flue, so that it does not pick up radiant heat from the flue.

This will cause it to run faster, and for a longer time when the fire is low.

If you wish to distribute the heat from the flue across the room, point the fan slightly towards the flue so that the moving air picks up the flue heat as well.

In my experience, placing the stove fan towards the back of the woodstove, and pointing into the room, works the best.



Model Stovetop  (NEAT-864)
Dimensions 230 high x 180 wide x 110 deep
Weight 860g
Airflow rate 200 – 360 cfm
RPM 1350 @ 350C
Start temperature 50C
Recommended temperatures 80 – 250C
Noise Less than 25 Db

          Price $149

See it working in a video here:  https://www.facebook.com/woodstovefan



2.  Flue-mounted fan

Save the heat that is going up the flue.

  • Capture and use the heat that is otherwise going up the flue and getting lost to the outside
  • Locate it about a metre above the stove and capture heat that would otherwise be wasted.
  • The hinged mounting is made for 150mm to 250mm diameter flue pipes, but can accommodate larger flues by using a longer stainless steel hose clamp band.
  • The magnetic mounting wings “grab” onto mild-steel flues, but will not hold onto stainless steel flues, where you will need to rely on the included stainless band to secure the fan.



Flue mounted stove fan

Flue mounted stove fan



How does the Flue-mounted Stove Fan work?

How the Flue stove fan works

How the Flue stove fan works



Model Flue-mount  (AUSM-34)
Dimensions 175 x 190
Weight 790g
Airflow rate 170 – 350 cfm
RPM 1230 @ 350C
Start temperature 100C
Max temperature 400C
Recommended temperatures 150 – 350C
Noise Less than 25 Db

         Price:  $169





3.  Twin-fan Wood Stove Fan

  • If your wood heater is installed in a fireplace much of the heat may be lost going up the chimney.
  • You can capture and redirect that heat across the room by using the squat twin-fan Wood Stove Fan.
  • This compact stove fan has two mini fans and sits on top of the wood heater just under the chimney, and disperses otherwise wasted heat right across the room.
  • Having two fans means considerably higher airflow than the other fans, and the heat may be projected further across the room.



Be amazed at the difference this makes!

Twin fan wood stove fan

Base size is 130mm x 75mm

The fan is just 138 mm high and 205 mm wide.  Designed to fit under a fireplace.



Model Twin-fan   (AUF-T84)
Dimensions 205 x 138
Weight 750g
Airflow rate 330 – 430 cfm
RPM 1930 @ 350C
Start temperature 50C
Max temperature 350C
Recommended temperatures 80 – 250C
Noise Less than 25 Db

Price:  $209



4.  Mini-turbo high-speed Wood Stove Fan

  • This new model has the highest air flow rate, yet it is small and compact.
  • If your wood heater is installed in a long room and you want the heat directed a long way, then this is the model for you.
  • Capture and send the heat up to 10 metres across the room by using this high-speed, compact mini-turbo Wood Stove Fan.

mini turbo stove fan



Model Mini-turbo stove fan   (AUF-524)
Dimensions 125mm high x 110 x 75 mm
Weight 710g
Airflow rate 300 – 460 cfm
RPM 2200 @ 350C
Start temperature 50C
Max temperature 350C
Recommended temperatures 80 – 250C
Noise Less than 20 Db

Price:  $239  SOLD OUT     Temporarily out of stock



5.  Swing Wood Stove Fan circulates heat more widely

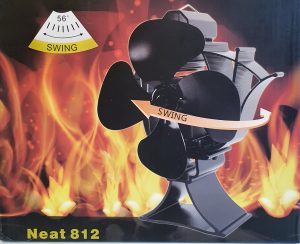

Solazone Swing Wood Stove Fan

Solazone Swing Wood Stove Fan

  • This new model has the widest air circulation, as it oscillates whilst it works.
  • The angle of the swing is around 56 degrees, so it can spread the warmth twice as efficiently.
  • The airflow rate is about 180cfm at a wide angle, from a 21cm diameter 5-bladed fan, as it oscillates around.
Solazone Swing Wood Stove Fan front view

Solazone Swing Wood Stove Fan front view

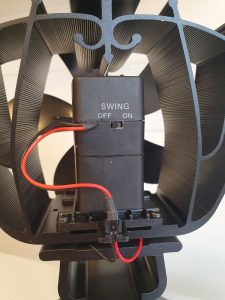

Solazone Wood Stove Fan Swing mechanism

Solazone Wood Stove Fan Swing mechanism



Model Swing Wood stove fan  NEAT-812
Dimensions 270mm high x 210 wide x 130 mm
Weight 1180g
Airflow rate 180 – 200 cfm
Start temperature 50C
Recommended temperatures 80 – 250C
Noise Less than 20 Db

Price:  $289



We have the longest warranty – a 3-years pro-rata, Australia-wide satisfaction warranty.

Just return any defective fan within the warranty period with a copy of your original receipt, for fast repair or replacement to keep you warm.

Guaranteed good quality by an Australian-based company, with local staff to provide prompt processing of your claim.

(Warranty obviously does not cover accidental damage, misuse, or abuse, nor the return postage cost)
