Fronius Inverters

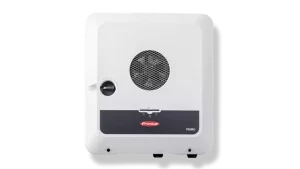

Fronius Primo GEN24 single phase inverters
Fronius Primo Gen24 inverter
Inverters for private photovoltaic systems with integrated basic backup power function
The Fronius GEN24 is equipped with PV Point, an integrated basic backup power function that supplies backup power to connected devices via a protected socket (as long as the sun is shining).
-
- Intelligent energy management
- Active cooling technology for a longer service life
- Flexible and fast installation
- Easy integration and management of Fronius or third-party components thanks to open interfaces
- The hybrid functions battery connection and full backup can be retrofitted to the GEN24 by Fronius UP.storage!
Fronius GEN24 inverter brochure
Fronius_Primo_GEN24_Datasheet_3_to_6kW

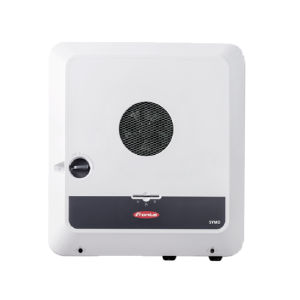

Fronius Symo GEN24 three-phase inverters and hybrid inverters
Backup power for every situation
A reliable energy supply: the Fronius GEN24 offers just that with an integrated basic backup power function, the PV Point. With the Fronius GEN24 Plus,
you can choose between the PV Point and the Full Backup option*, which provides backup power for the entire home.
Built-in freedom
The Fronius GEN24 and Fronius GEN24 Plus have open interfaces. This makes it easy to integrate components from Fronius or third-party suppliers for a tailor-made photovoltaic system.
Versatility as standard
More functions. More control. More power. Thanks to their energy management functions, the Fronius GEN24 and Fronius GEN24 Plus continuously save time and money. What’s more, the integrated active cooling extends the service life of the inverter, protecting your investment for many years to come.
Maximum independence
By combining the Fronius GEN24 Plus with a battery, you can get even more out of your photovoltaic system, even at night. Use more of your own electricity and become more independent of electricity providers and prices
Smarter, Lighter, more Flexible three phase power
The Fronius Symo’s ability to communicate with the user, the PV system and the grid makes it one of the smartest inverters available. With the Fronius SnapINverter design it is also one of the lightest and easiest to install. The wide input voltage range and two MPP trackers ensure super design flexibility. Boasting power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for systems of every size.
| SYMO 5.0-M | |
| SYMO 6.0-M | |
| SYMO 7.0-M | |
| SYMO 8.2-M | |
| SYMO 10.0-M | |
| SYMO 12.5-M | |
| SYMO 15.0-M | |
| SYMO 17.5-M | |
| SYMO 20.0-M |
fronius-symo-10.0-20.0-m-inverter-data-sheet
Fronius Symo GEN24 three-phase Hybrid inverters
The Fronius Symo Hybrid is the heart of the 24H Sun storage solution.
From a simple inverter one minute, the battery and emergency power function can be added with ease to create a comprehensive storage solution. The result: sun by day, sun by night and sun during power outages.
| Fronius Symo Hybrid 3.0-3-S | |
| Fronius Symo Hybrid 4.0-3-S | |
| Fronius Symo Hybrid 5.0-3-S |
Fronius Eco – 3 Phase – 27 kW
Compact three-phase solar inverter – 27kW
The three-phase Fronius Eco perfectly meets all the requirements of large-scale installations. Thanks to its light weight and SnapINverter mounting system, this transformerless device can be installed quickly and easily either indoors or outdoors (IP 66 protection class).
Features
– simple mounting system
– integrated data logger and web server
– integrated wifi module
– integrated double fuse holders
| Fronius Eco – 3 Phase Grid Connect Inverter – 27 kW | |
|---|---|
| Maximum input voltage | 1000V DC |
| Minimum input voltage | 580V DC |
| MPP Voltage range | 580 – 850V |
| Max efficiency | 98.3% |
| Rated power output | 27,000W |
| Operating temperature range | -25 to +60°C |
| Protection Class | IP66 |
| Cooling | regulated air |
| Dimensions (mm) | 725(H) x 510(W) x 225(D) |
| Net weight | 35.7kg |
| Model | Eco 27.0-3-S |
| Manufacturer | Fronius International GmbH |
| Warranty | 5 years |
