Kyocera Solar Panels
Kyocera began researching photovoltaics in 1975 and has installed thousands of systems throughout the world since 1978. These systems are ideal for chargingstorage batteries to power remote homes, recreational vehicles, boats, telecommunications systems, and other consumer and commercial applications.
Kyocera’s advanced cell-processing technology and automated production facilities produce highly efficient multi-crystal photovoltaic modules. To protect the cells from the most severe environmental conditions, they are encapsulated between a tempered glass cover and an EVA pottant with a PVF back sheet. The entire laminate is installed in an anodized aluminium frame for structural strength and ease of installation.
Kyocera’s advanced cell processing technology and automated production facilities have produced a multi-crystal solar cell with a very high efficiency. All Kyocera solar panels are constructed using a tempered glass front, EVA pottant, and a PVF backing to provide maximum protection from the most severe environmental conditions. The entire laminate is framed in a heavy-duty anodized aluminum frame to provide structural strength and ease of installation. Because Kyocera solar modules are so efficient less space is required than other solar panels of equal output. This translates to both more wattage per square foot and lowers mounting structure cost.
Kyocera solar panels have passed rigorous tests that show that they will outperform other brand solar panels in saltwater environments. Kyocera solar modules passed the Salt Mist Corrosion Test, showing that these solar panels are ideally suited for long-term deployment in marine and coastal areas. Salt mist is very corrosive and can damage key components of the solar panel, including the frame, internal wiring, and even the glass. However, the tests show that the Kyocera solar panels are built to withstand this salt mist.

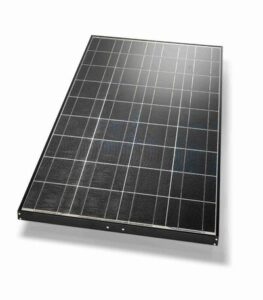

Kyocera KG160GX-LFE solar panel.
The ideal solar panel for 12-volt charging of RVs and mobile camper vans. Don’t settle for less.
Tough, proven, and with reliable, highest output, in any sunlight conditions.
This panel is the ideal replacement for previous Kyocera models from 130w to 150 watts, as it has the same frame size, but with increased output.
| Peak Power (Pmax) | 160 watts |
| Max Power Voltage (Vmpp) | 18.2 volts |
| Max Power Current (Impp) | 8.25 amps |
| Open Circuit Voltage (Voc) | 22.5 volts |
| Short Circuit Current (Isc) | 8.87 amps |
| Max System Voltage | 600 volts DC |
| Dimensions (mm) | 1500 x 668 x 46 |
| Weight | 12.5 kg |
| Tolerance | +7% -0% |
| Price (March 2023) | $595 |
The 160-watt model has exactly the same frame size as the previous 135, 140, 145, and 150-watt panels.
KG160GX-LFE-S specifications
Previous KD145GH specifications
Kyocera KU270-6MCA Solar Panel
The KU270-6MCA is the perfect larger wattage solar panel for grid installation and standalone power systems. With 40 years of experience in solar energy, Kyocera continues to produce the world’s leading solar panels.
Kyocera has the highest average output over any other crystalline solar panel in the market. Kyocera Panels are also certified to Salt Mist Corrosion Test and has passed the Fraunhofer’s high-voltage stress test with zero degradation. Making it the highest quality solar panel on the market.
Kyocera solar panels have over 18% conversion ratio of sunlight to electrical power, anodised aluminium frame for structural strength, with unique triple busbar connection construction to increase performance in partly shady conditions. Kyocera Panels will perform for years to come.
Experience the quality and reliability yourself.
| Specifications: | KU270-6MCA | |
| Max Power | 270 watts | |
| Voltage at Max Power (Vmp) | 31.0 volts | |
| Current at Max Power (Imp) | 8.71 amps | |
| Open Circuit Voltage (Voc) | 38.3 volts | |
| Short Circuit Current (Isc) | 9.43 amps | |
| Max System Voltage | 1000 volts | |
| Series Fuse Rating | 15 amps | |
| Dimensions | 1662 x 990 x 46 mm | |
| Weight | 19 kg | |
| Connectors/Cables | H4 | |
| Number of Cells | 60 | |
| Application | Grid Tie | |
* Single panels attract $30 broken pack surcharge.
Kyocera-ku270-6mca-solar-panel-datasheet
