Sunrain

Sunrain Solar (Queensland)



Sunrain Stainless Steel Electric Boost Thermosyphon (Roof-top) Solar Water Heaters

SUS316L grade stainless steel inner tank

Sunrain 300 litre hot water service



  • Long Life, Durable Stainless Steel Tank
  • Designed specifically for Australian conditions
  • Design optimised by Australian engineers and tradesmen
  • Stainless steel and aluminium rooftop mounting frame – ideal for all coastal areas
  • High-performance solar collectors with toughened glass to resist hail and other falling objects
  • Fast installation and convenient lifting handles
  • 316 Grade stainless steel tank mounting frames (factory fitted for fast installation)
  • 10 Year tank and 7 Year collector warranty (limited – see Installer Manual)
  • Fully approved to Australian Standards
  • Fast installation cyclone rating installation kits available (C4/N6)
  • 35 STC’s for both models in Zone 3



Sunrain tank end

Sunrain tank end

TECHNICAL DATA AND DIMENSIONS

Sunrain Model FPTS200-2D FPTS300-2D
Storage Capacity (Litres) 200 300
Inner Tank construction SUS316L Stainless Steel
Outer Tank Dimensions (mm) 1518 x 550 2250 x 550
Tank Weight – Dry / Full (kG) 44/239 62/360
Outer Shell construction SUS316L Stainless Steel or Ironstone Zinc Steel
Number of Solar Collectors  2 2
Collector Dimensions / weight (Each) 2.0 x 1.0 m / (38kG)
Booster Element Rating (kW) 3.6 3.6

Stainless Steel and rugged anodised aluminium mounting frame and pitching frames available.

Prices do not include delivery

Specifications here:



Sunrain Evacuated-tube Electric Boost Split System Solar Water Heaters

Sunrain Electric-Boost-Solar-with-Heat-Pipe

Sunrain Electric-Boost-Solar with Heat-Pipe collector



  • Designed for Australian conditions with high-quality componentry
  • Glass-lined mild steel tanks with sacrificial anode
  • Compact collector size allows for versatile architectural integration
  • Easy tube replacement without loss of hot water
  • Large manifold to reduce heat losses
  • 7-year tank and collector warranty (Limited)
  • Systems full Australian Standard Approved and eligible for Government incentives (STC’s)



Model TZ250E25 TZ250E30 TZ315E25 TZ315E30 TZ400E30 TZ400E40
Capacity (L) 270 270 340 340 450 450
No. Tubes 25 30 25 30 30 40
Tank size 648 x 1408 648 x 1408 648 x 1711 648 x 1711 730 x 1733 730 x 1733
Collector size 2020 x 2240 2020 x 2655 2020 x 2240 2020 x 2655 2020 x 2655 2020 x 3650
Tank kg (empty/full) 84 / 354 84 / 354 102 / 442 102 / 442 150 / 600 150 / 600
Collector kg 96.1 114.1 96.1 114.1 114.1 154.2



Sunrain Evacuated-tube Solar Collectors

Quality evacuated tube collectors with an aluminium manifold cover that will never rust.

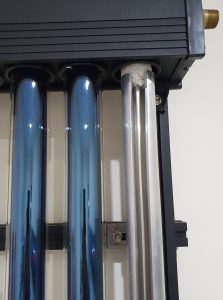

Sunrain evacuated tube collector

Sunrain evacuated tube collector

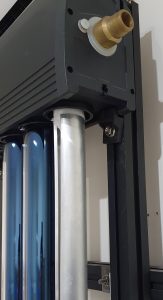

Sunrain evacuated tube manifold

End view of manifold



25 tube collector 2020 x 2240 $1500
30 tube collector 2020 x 2655 $1700
40 tube collector 2020 x 3650 $2400

Flat roof frames, cyclone kits and other accessories available.



Sunrain Flat Panel Solar Collectors

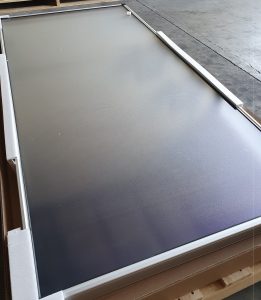

Sunrain solar collector

Sunrain solar collector

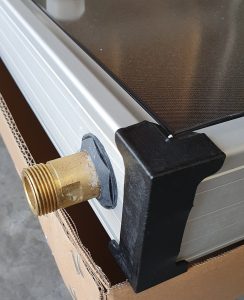

Solar collector connection

Solar collector connection

Good quality 2m x 1m replacement solar collectors with frosted glass, aluminium boxes and copper collector plates.    New 20mm connections.





Order here – fast delivery to your area.
