Wires & Cables

Wires, cables and accessories

Wires, cables and accessories

Solazone stocks a large range of cables, wires, and accessories.

Good quality cable ensures that the power generated by your solar panels ends up where you want it – not ending up as wasteful heat.



Extra Low Voltage cable for solar panels and lights

Solar panel Extra Low Voltage cables
Use for solar panel wiring – Twin Sheath DC cables – designed for up to 100 volts dc – Red & black wires with a black PVC safety sheath

Twin Cable Common usage Length Prices 2021
4mm – 15a rated Use for small solar panels, wiring of DC lights and fans 30m $67
4mm – 15a rated 100m $
6mm – 50a rated Use for larger solar panels, wiring of DC light circuits, DC fridges, and pumps 30m $98
6mm – 50a rated 100m $
7mm EBS8&S – 85a Use for long runs of solar panel wiring, DC fridges, and pumps 30m $147
7mm EBS8&S – 85a 100m $315
13.5mm EBS6&S – 165a Use for long runs of solar panel wiring, DC fridges, and pumps 30m $242
13.5mm EBS6&S – 165a 100m $724

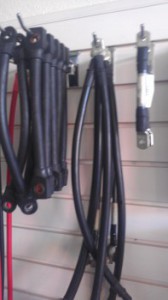

Battery Cables

Battery Cables
Available models
35 mm – 100 amps dc continuous rated 200 mm
35 mm – 100 amps dc continuous rated 300 mm
35 mm – 100 amps dc continuous rated 1.0 m
35 mm – 100 amps dc continuous rated 1.5 m
35 mm – 100 amps dc continuous rated 2.0 m
35 mm – 100 amps dc continuous rated 2.5 m
35 mm – 100 amps dc continuous rated 3.0 m
35 mm – 100 amps dc continuous rated 3.5 m
35 mm – 100 amps dc continuous rated 4.0 m



Grid-connected Solar panel cables & accessories

Grid-connected Solar panel cables & accessories
Available models
Twin Core Solar DC cable – 4 mm
Single Core Solar DC cable – 4 mm
Single Core Solar DC cable – 6 mm
Single Core earth cable – 4 mm
Single Core Solar DC cable with MC4 ends fitted – 2.5 m
Single Core Solar DC cable with MC4 ends fitted – 5 m
Single Core Solar DC cable with MC4 ends fitted – 8 m
Single Core Solar DC cable with MC3 ends fitted – 2 m



Battery Safety Boxes

Battery Safety Boxes

We supply custom-made ventilated battery boxes, sized to suit the battery type and installation.
All comply with the Australian Standards and are suitable for installations where a government rebate is involved.

Boxes are vermin and child-proof, and are an excellent way of protecting the hazardous battery area from damage by foreign objects and sparks.

Generally, the boxes have a raised timber floor to keep the batteries from resting on concrete.



High-set battery boxes

Highset battery box

High-set battery box



















Ideal for flood-prone areas, keeps the batteries dry, and safe from vermin.

Adequate ventilation provided, plus space for your battery charger. Galvanised steel frame, with marine ply covers, painted to suit the house.



Battery Fuses

Battery Fuses
We stock a range of battery fuses, suitable for protecting batteries from direct short circuits, and helping to prevent fires. They are built to Austalian standards, and are necessary where stand alone battery systems are used.

Available models
Fuse switch complete with 160/160/63 fuses
Fuse switch (empty)
Replacement fuse – 160 amps rated
Replacement fuse – 160 amps rated
Fuse switch complete with 160/160/63 fuses
Fuse switch (empty)
Replacement fuse – 160 amps rated
Replacement fuse – 63 amps rated



Battery Safety Signs

Battery Safety Signs
We stock sets of A4 laminated safety signs, that comply with Australian Standards for safety signage.

The sign sets include

  • Danger Warning Sign
  • Emergency Shutdown Procedure Sign
  • Spark Hazard Warning Sign
  • Electrolyte Burns Procedure Sign



Inverter / Generator Changeover switches



DC / DC converters
