Solar Air Heaters

SAM Solar Air Heaters



The SAM factory has closed – no stock is available at the moment.

We are expecting a new product launch very soon.

SAM Solar Air Module

Warms up chilly rooms in the home, and dries out damp bathrooms.

Prevent mould, dampness and musty smells.

Owners of these devices often acclaim the difference they enjoy.

Continuous warm comfort provided, forever, and for no running cost.

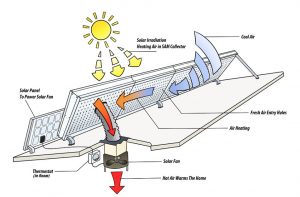

SAM install picture

SAM install picture



  • Fresh, preheated dry air is introduced to increase comfort and reduce moisture, condensation, mould, mildew, smells and dampness.
  • SAM reduces the need for heating using conventional heaters or closing off part of the house.
  • Heat is produced by the sun in the unique solar air heating panel, and introduced by a solar-powered fan.
  • The stronger the sunlight, the better it works.
  • Thus the SAM solar air heater operates at zero cost, and even works in partly overcast weather.

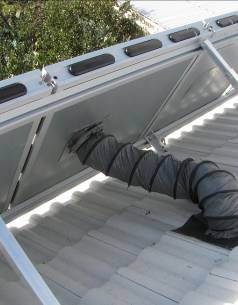

Back of the SAM solar air heater, showing the insulated air duct.

Back of the SAM solar air heater, showing the insulated air duct.



  • Heat living areas during the day, so the house is already comfortable and warm when you come home.
  • Dry out bathrooms, or other damp rooms to eliminate mould and damp towels.
  • Warm chilly offices or bedrooms to always feel comfy.
  • Eliminate mouldy shoes and damp clothes in walk-in robes.
Stop the dampness in walk-in robes

Warm, dry, walk-in robes without mould.



  • Remove condensation and dry out indoor spa and pool areas.
Keep the indoor swimming pool environment warm and dry

Warm and dry indoor swimming pool environments.

  •  Warm and freshen up games rooms, gymnasiums, or work studios, to feel fresh, alert and inviting.
Warm fresh air eliminates smells and odours

No more smells and odours in the gym.

  • Eliminate mould in damp rooms, and remove stale odours.
Eliminate mould problems in damp rooms

Eliminate mould problems in damp rooms

  • Warm up and dry out indoor drying rooms, bathrooms and bedrooms.
Dry clothes fast, indoors, in any weather.

Dry clothes fast, indoors, in any weather.

  • Warm and dry up swimming pool enclosures, sports areas and change rooms.

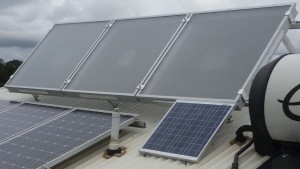

SAM Solar Air Modules

  • The Solar Collectors are each approximately 1 metre x 1 metre x 100mm.
  • The frames are made from aluminum, supporting 4mm tempered
  • Safety Glass at the front.
  • The inside of the backing plate is black to maximize solar heat collection, and it has a series of 2mm holes that allow filtered fresh air to be drawn into the solar collector, through the back.



Warm air inlet duct is insulated and protected.

Warm air inlet duct .

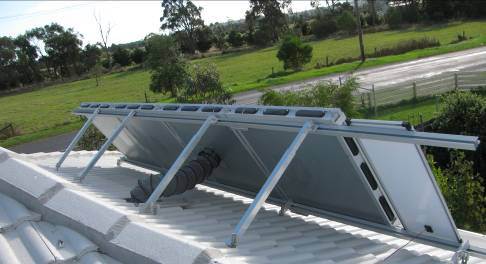

sam4 installation

SAM4 installation



Easy and safe installation of four SAM air heaters.

Easy and safe installation of four SAM air heaters.

  • The sun heats the air, as it is drawn through the solar collectors by the Solar Powered Fan.
  • The warm air is ducted into the house through a ceiling or wall vent.
  • The solar collectors are designed to be modular, so you can add as many collectors as you want.
  • A good rule of thumb is 3 solar collectors for heating about 100 square meters of space.

If you are using multiple solar collectors chose the best-placed module for the outlet, leaving the remaining outlet cover plates in place. The solar collectors may be mounted on the roof or an external wall, using the specially designed rail mounting system.



Recommended Solar Air Module Home Heating Kits  Prices Feb2023
SAM1  – Heats up to 30 sqm & improves air quality. Single SAM module, roof mounting kit, 20w fan, 20w solar panel, thermostat, roof penetrations, wires, insulated duct, ceiling vent, and mounting hardware. $1800
SAM2  – Heats up to 60 sqm, improves air quality & eliminates damp and mould problems. Two SAM modules, roof mounting kit, 20w fan, 20w solar panel, thermostat, roof penetrations, wires, insulated duct, ceiling vent, and mounting hardware. $2200
SAM3  – Heats up to 100 sqm, improves air quality & eliminates damp and mould problems. Three SAM modules, roof mounting kit, 20w fan, 20w solar panel, thermostat, roof penetrations, wires, insulated duct, ceiling vent, and mounting hardware. $2700
SAM4  – Heats up to 130 sqm, improves air quality & eliminates damp and mould problems. Four SAM modules, roof mounting kit, 16w fan, 40w solar panel, thermostat, roof penetrations, wires, insulated duct, ceiling vent, and mounting hardware. $3200

Installation instructions-for-SAM-heat-collectors
