Small Horizontal Wind Turbines

Small Horizontal Wind Turbines

Selected to suit Australian conditions, these hardy machines have been chosen for reliable and quiet service in our harsh environment, and are ideal for both marine and land-based applications.

Installation is very simple and can be performed by one or two people with just hand tools, in a couple of hours.

Solazone 400w wind generator in Mooloolaba

 400w wind generator in Mooloolaba

  • External parts are powder-coated aluminium or carbon-fibre plastic, with quality stainless steel fixing screws and nuts.
  • Marine models are all protective-coated on the inside to ensure a long life.
  • Strong blades – latest carbon fibre blade design allows up to 40 m/s wind speeds.
  • Quiet blade design – special blade moulding breaks up laminar flow across the blades, reducing noise.
  • High wind protection – blades bend out of shape in very high wind, protecting the wind generator.
  • Ideal for boats and marine environments, as well as on land.
  • Matching battery charge controller included.
  • Mount to a standard 48 mm locally available stainless steel, or galvanised pipe.
  • Simple installation, using a 3-wire cable (not supplied) between the wind generator and the charge controller.
  • From the controller to the battery use twin 6mm double insulated wire, or heavier.

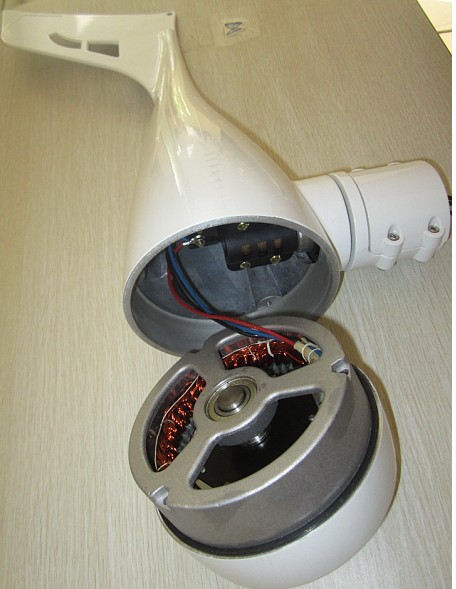

Showing inside the Ultra 400 wind generator

Showing inside the Ultra 400 wind generator

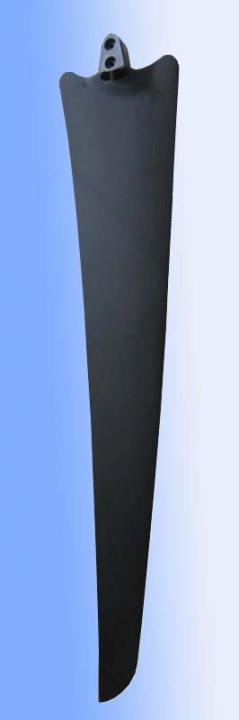

Latest carbon fibre blade design

Latest carbon fibre blade design

 Models we supply:

Horizontal Off-grid Wind Turbine Models Output Voltage
Ultra X300 – Marine version  100 – 250w 12, 24 volt
Ultra X400 – Marine version  400 – 500w 12, 24 volt
Ultra X600 –   600 – 900w 24, 48 volt
Ultra X2000  1.5 – 2 kw  48, 96, 110 volt



X300 marine models – 12 or 24 volt

Trickle charger, quiet, reliable, with small blade diameter, will fit anywhere.





X400 models – 12 or 24 volt

Ultra 400 Wind generator packaged, ready for assembly.

Ultra 400 Wind generator packaged, ready for assembly.

Rated output power 400 watt
Maximum power 500 watt
Voltage 12 volt & 24 volt
Start wind speed 2.5 m / s
Rated wind speed 11 m / s
Security wind speed 45 m / s
Gross weight 9 kg
Rotor diameter 1250 mm
No of blades 3
Recom tower hght 6 metres
Blade material Carbon fibre reinforced plastic
Generator type 3 ph perm magnet synchr generator
Control system Electromagnetic / lateral wind control



X600 models – 12, 24, 48 volt

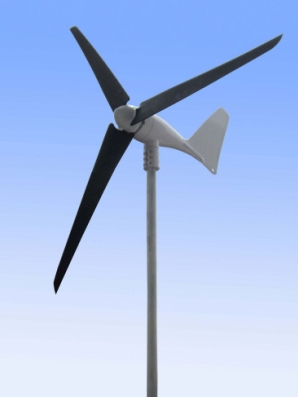

Ultra S600 Quiet, with 3 carbon fibre blades

Ultra S600 Quiet, with 3 carbon fibre blades

Rated output power 600 watt 600 watt 600 watt
Maximum power 560 watt 700 watt 960 watt
Voltage 12 volt 24 volt 48 volt
Start wind speed 2 m / s
Rated wind speed 13 m / s
Security wind speed 45 m / s
Gross weight 15 kg
Rotor diameter 1850 mm
No. of blades 3
Recommended tower height 6 metres
Blade material Carbon fibre reinforced plastic
Generator type 3 phase permanent magnet synchronous generator
Control system Electromagnetic / lateral wind control



X2000 models – 48, 96 & 110 volt

X2000 wind generator specifications





Vertical Axis models
Vertical Axis Wind Turbine details here:
