Plasmatronics



Australian-made PL series of charge controllers that give you the freedom to operate your solar power system the way you want to.

  • They offer complete control over the charge cycle, plus an unprecedented amount of useful information about current and past performance.
  • PL regulators help to protect the system with a built in low battery disconnect switch.
  • In addition, the versatile event controller can switch power on or off according to criteria set by the user. This allows the PL to do extra tasks such as switching a light on at night or keeping a water tank full by operating a pump when needed.
  • The user can select either Pulse Width Modulation or slow speed switching.
  • Regulation can be done in both series and shunt modes.
  • Other features include backup generator control and charging a second battery.

Informative Display shows battery voltage, charge current, ampere hours in and out of battery, load being drawn from the battery and which part of the charge cycle the battery is in.
Easy to maintain Information is available for the past 30 days – so even if the user doesn’t remember what happened, the regulator will.
Well Connected With the optional PLI interface and PL com software, the user can access can be read or settings adjusted. This can be done remotely using a modem.
Versatile Built to handle l2, 24 and 48V systems and allow complete control of the regulation cycle mean you can use it almost anywhere.

Adjustable: All settings are adjustable and are stored in a non-volatile memory.
Display: User friendly alphanumeric LCD gives you words to explain the numbers. Energy Metering: Shows daily charge and discharge amp hours.

Three Step Regulation: Boost, Absorption and Float modes with an optional periodic Equalisation mode.. Can switch in series, shunt or series & shunt modes.

History: Records charge and load amp hours, max and min battery voltages and state of charge for the last 30 days. Remembers how much was really collected and used.

Generator Control: A sophisticated generator controller is included with four different modes of control available and a quiet time option.

Event Control: A versatile event controller allows the load to be turned on or off under a user selected set of conditions. Can be used for lighting, pumping, frost control etc.

Alarm: There is an adjustable low or high battery voltage alarm.

Second Battery: When the main battery is full, use the waste energy to charge an auxiliary battery. The PL supplies a signal to switch a relay to the second battery.

Remote Control: A computer can communicate with the PL using the PLI RS232 interface. Data can be downloaded and settings adjusted from far away.

Protection: Protected against short circuit, reverse flow, lightning. Low battery load disconnect function built in. Current limit for over heat or over current. Conformal coating applied to protect against corrosion.

External Shunts: Two external shunts can be connected using the DC isolated PLS adaptor.

SpecificationsPL20PL40PL60PL80
System Voltages12, 24, 32, 36 or 48 volts
Maximum Solar Charge Current20 amp40 amp60amp80 amp
Maximum Load Switch Current20 amp7 amp30 amp40 amp
Voltage Drop at Rated Current0.4 v0.4 v0.42 v0.42 v
Operating Ambient Temperature Range– 20 °C to 55 °C
Supply Current9 mA13 mA20 mA20 mA
Battery Temperature Sensor Range– 5 °C to 50 °C
Regulation Set Points4 set programs else user adjust
Dimensions (mm) H x W x D100 x 109 X 41130 x 124 X 50225 x 175 X 62225 x 175 X 62
Weight320 g515 g1100 g1200 g



 PLA The PLA allows up to 3 PL series charge controllers to work together. The PLA provides a common communication interface, four alarm or control channel outputs, and can control a separate load control unit called an LS1.
The PLA makes system performance data retreival easier by providing a PC compatible way of collecting system total information.


 PLM PLM
Remote monitor allows remote access using one PL series. One button operation and audible alarm.


PLS-2

PLS2 Shunt adaptor – This allows the PL regulator to also read what goes in an out of the batteries, apart from through the regulator, and allows the regulator to indicate total input, total output, and percentage state of charge of the batteries.

Also required is a suitable shunt, and the WYS or WZS connecting cable.


Plasmatronics PLIPLI Serial Interface

The PLI is an RS232 interface for Plasmatronics PL series regulators. It allows data communication between a computer and the regulator (via a modem if necessary).
The PLI uses optical coupling to prevent problems due to ground potential differences. This means that there is no electrical connection between the computer side and the PL side.
The energy to operate the PL side is drawn from the battery bank connection of the PL controller. The energy required to operate the computer side is drawn from the computer serial port connection.
The PLI is a device to allow the PL series solar controllers to communicate with a computer. The PLI can be connected to a computer with a standard IBM serial cable.
You can also connect a modem to the PLI.


Plasmatronics PLT-5M

Temperature Sensor PL with 5 metre lead


Plasmatronics WXS cableWXS connecting cable for PLS2, PLA, and PLI


 Plasmatronics WYS cable Plasmatronics WYS cable for PL20 and PL40


Plasmatronics WZS cablePlasmatronics WZS cable for PL60

PL20 Regulator – 20A 12-48V with Digital Readout$335
PL40 Regulator – 40A 12-48V with Digital Readout$430

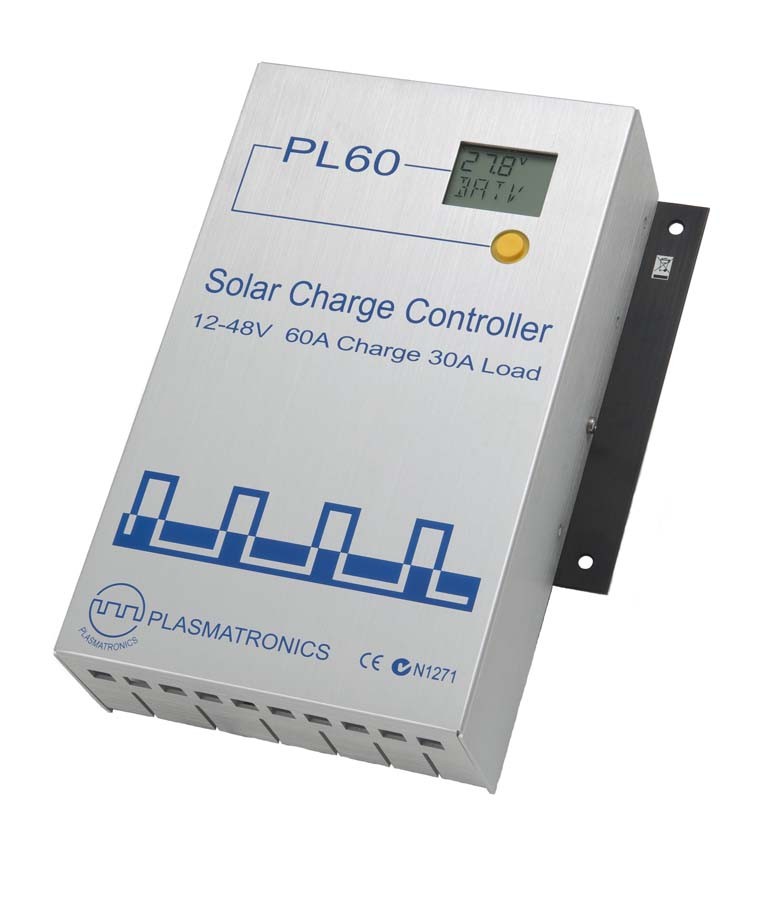

PL60 Regulator – 60A 12-48V with Digital Readout$670
PL80 Regulator – 80A 12-48V with Digital Readout$870
PLA – Plasmatronics Alarm Unit and PL Interface$380
PLDA – Double Adapter for use with Plasmatronics Control$9
PLI – Serial Interface Connect To Plasmatronics Control$95
PLJ – PL Accessory Cable Shielded 3 metres$6.90
PLM – Remote Monitor For All PL Series Regulators$170
PLS2 – Shunt Adaptor suits all PL regulators$165
PLTB – Temperature Sensor PL Reg Bolt On M10 Lug$31
SH200 – Shunt 75MV 200A$90
SH100 – Shunt 100MV 100A$90
WXS – PL Accessory Cable – shielded 3 metres$21
WYS – PL20/PL40 accessory shielded cable 3 metres$29
WZS – PL60 Accessory Shielded Cable 3M$29



Plasmatronics Dingo

The Plasmatronics Dingo charge controller is the next generation of controllers. Inheriting many of the features of the PL series, just to list a few – More data storage (512 Days!), Negative Ground (to suit mobile applications), enhanced one button interface, LED backlight for LCD Display, Hidden wiring and much more!

Features

>> Reliable, easy to understand, one button interface and proven, easy to learn menu structure.
>> Symmetrical charge and load currents, both 20A.
>> Industry standard four stage charging regime.
>> 12,24,32,36 and 48V selectable. Only one controller to stock.
>> Unbeatable high temperature performance. Full charge and full load current, without interruption to operation, in a 50oC ambient. All day, every day.
>> Fast, reliable, affordable, Plasmatronics Service, long after the long warranty has expired

What’s New ?

Negative Ground
New Communications Bus
More Data Storage
Enhanced one button interface
LED backlighting
Hidden Wiring.
More terminals
Generator Terminals
The Accessories available so far include shunt adaptors (DSA) and two different data adaptors (DUSB and D232).
* The DSA reads external charge or load currents. You can use up to 4 per system.
* The DUSB provides a USB interface to a computer.This allows the user to download all the data from the controller and change settings if required.
* The D232 provides an RS232 interface (DTE) designed for remote computer access via a modem.

>> 1 year manufacturer’s warranty

>> Nominal System Voltages: 12,24,32,36 and 48V

>> Maximum voltage BAT+ to BAT-: 100V
>> Maximum 1 minute BAT+ to BAT- volta: 120V
>> Maximum voltage SOL+ to BAT-: 100V
>> Maximum voltage LOAD+ to BAT+: 70V
>> Maximum voltage on G relay terminals: 90V
>> Maximum voltage B+sense to BAT+: ±30V
>> Maximum continuous charge current: 20A
>> Maximum continuous load current: 20A
>> Maximum load current for five minutes: 30A
>> Maximum ‘G’ relay current: 300mA
>> Battery temperature sensor range: -20/+70?C
>> Maximum storage temperature: 70°C
>> Supply current (dingo only, 12V): 9mA
>> Supply current (dingo only, 60V): 15mA
>> Supply current max (with access): 26mA
>> Maximum power wire entry size: 16mm (6 AWG)
>> Signal Connection Block 0.2 to 1.3mm (26-16AWG)



Dingo ModelDescriptionPrices March 2016
DINGO PL20/20PL20 Dingo Regulator; Negative Ground12/48V Expandable 20A Charge 20A Load$340
Dingo Accessories
PLDUSBPL20 Dingo USB interfaceFor Connection to PC$97
PLDTDingo Temperature SensorPlastic Case$29
PLDTBDingo Temperature SensorBolt on Metal Lug$29
PLDSAPL20/20 Shunt AdapterUp to 4 Per PL20/20$162
PLD232PL20/20 Regulator RS232Interface for Modem$97
SH200Shunt 75MV 200A$90
SH100Shunt 100MV 100A$90
WXSPL Accessory CableShielded 3M$21
WYSPL20/PL40 AccessoryShielded Cable 3M$29
WZSPL60 AccessoryShielded Cable 3M$29



Plasmatronics PR series Regulator

PR Series regulators– A simple two stage regulator for charging liquid electrolyte lead acid batteries from photvoltaic panels. It uses a rugged power mosfet and switches on the negative side.

 PR The PR1210 regulator works like an intelligent switch between the battery (-) terminal and the solar (-) terminal. Charge current flows into the battery until the battery voltage rises to the boost maximum of 14.6 volts. The regulator then switches to float mode. The current is then switched off and the battery voltage slowly falls. When the battery voltage drops below the float cut – in voltage (13.4 v), the current is switched on again until the battery voltage rises to the float maximum of 14.0 volts. The charge current is then switched off. The regulator switches the current on and off to keep the battery voltage between the float maximum and the float cut in voltage. When the battery has been discharged enough for it to fall below the boost cut in voltage (12.5 v), the unit will switch back into boost mode. DO NOT attempt to test this regulator without a battery connected. This is not a linear regulator. The PR1210 is ideal for camping, boating and other one or two panel solar applications. It features brass inserts and screws in the terminal block and is fully enclosed in resin. The PR1210 is not adjustable.



 PL40 MASTER / SLAVE CONFIGURATION

Demonstrating set up of twin PL40 regulators in master and slave configuration, using PLA & PLI Interface.
