Regulators & Battery charge controllers
Stecca Regulators (see below)
- Windpower Australia Regulators (see below)

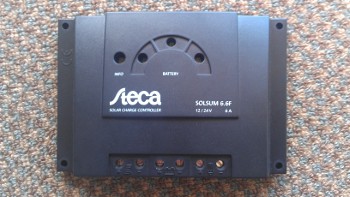

Stecca Solsum Regulators
Reliable basic regulators that have lights indicating charging, and 3 levels of battery state of charge. They also have load control terminals that will disconnect a load if the battery reaches low voltage, thus protecting the battery from over-discharge.
|Solsum 12 / 24 volt 6.6 amp – with low voltage load disconnect||$65|
|Solsum 12 / 24 volt 8.8 amp – with low voltage load disconnect||$88|
Stecca PR Series Regulators
Great regulators, because they are accurate, switch on the positive, so are ideal for mobile applications, and they tell you everything that you need to know. They are fully temperature compensated, with constant voltage PWM series charging, include reverse current blocking at night, low power consumption & high efficiency.
|Steca PR Model||Description||Prices|
|PR1010||Solar Regulator 12/24V||10A withLCD||$140|
|PR1515||Solar Regulator 12/24V||15A with LCD||$160|
|PR2020||Solar Regulator 12/24V||20A with LCD||$180|
|PR2020-IP||Solar Regulator 12/24V||20A LCD IP65 Enclosure||$200|
|PR3030||Solar Regulator 12/24V||30A with LCD||$220|
|PRTEMP||Temperature Sensor||Steca Regulator|
Wind Power Australia Regulators
These regulators do not require any form of external sensing for the presence of sunshine, hence there are only two circuits to complete. Internal electronics monitor the battery state of charge and the solar panel voltage. When the battery voltage drops to around 13 volts the regulator will call for charge. Providing there is sunshine on the solar panel this call will be answered and both the green charge LED and the relay will be turned on after a delay of about 6 seconds. This will cause current to flow to the battery. The battery voltage will rise until it reaches approimately 14.4 volts at which point the regulator will turn off the relay and the charge LED.
During the charging time the regulator will disconnect the solar panel from the battery every 20 minutes to determine the state of the solar panel output. Assuming there is charge available, 8 seconds later it will recommence charging. At the end of the day this same function will prevent the regulator from staying on all night.
|ESR 1||12 volt – 1 amp – very low power draw, no LED||$58|
|ESR 3 / 6v||6 volt – 3 amp – for sealed battery||$128|
|ESR 10SLA||12 volt – 10 amp – for SLA standby battery only||$80|
|WPA 1220||12 volt – 20 amp||$110|
|WPA 2420||24 volt – 20 amp||$132|
|WPA 12100||12 volt – 100 amp||$220|
|XL 70||12/24/36/48 volt – switchable voltage – Up to 70 amps||$450|
