Aerogen (LVM) Wind Generators

Aerogen (LVM) Wind Generators

These excellent and reliable wind turbines are made in the UK by LVM.

They feature the latest technology, and the expertise and experience gained since 1982. The models below are “third generation”, and are being used all over the world for yachts, research institutes, military forces, and for small power applications in remote areas.

Powerful Performance – Designed for all wind speeds

The optimum wind speed is between 5 and 20 knots. Aerogens are designed to operate efficiently in this range, starting to charge at 5 knots. Equally they take advantage of higher wind speeds to produce higher outputs continuously and safely.

Compact, light, robust and maintenance free

Aerogens are lighter and smaller than some units with similar or even lower performances. They are sturdy and robust, and incorporate heavy duty bearings, slip rings and brushes. Corrosion resistant marinised materials are used throughout.

Quiet, safe, low speed efficient propellors

LVM computer designed aerofoil section blades are used to maximise the generators output at comparatively low wind speeds therefore ensuring enhanced safety, comfort and bearing wear.

High efficiency brushless alternators

High efficiency hand wound 3 phase brushless alternators and neodymium iron boron permanent magnet rotor, sleeved and epoxy coated, mean Aerogen provide years of maintenance and trouble free use.

Easy Installation – Mounting Kits available

All Aerogens are available in 12 or 24 volt versions



Aerogen 4

Produces more power for the cruising yachtsman and static and mobile caravans.

Aerogen 4

  • Powerful design with thousands in use worldwide
  • Suitable for Cruising Yachtsmen as well as static and mobile caravans
  • Ideal on a 10M boat to provides power for engine and domestic batteries
  • High efficiency alternator
  • Robust and maintainance free
  • Starts charging 0.5A at 8 Knots, Maximum windspeed of 60 knots gives 20A

It can provide sufficient power for cruising yachts with significant electrical equipment – even refrigeration.

Safe in storms as it is self limiting. Mounting for 1″ or 1.5″ tube.

Owners Manual pdf

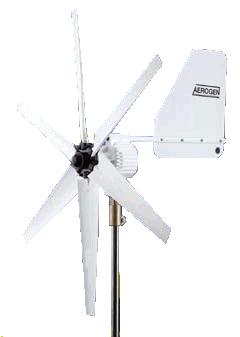

Aerogen 6

The powerful Aerogen is the ideal unit for live aboard yachtsmen, and for applications with high power usage.

  • Ideal for the live aboard yachtsmen and applications with high consumption
  • Optimised to produce high outputs safely and continuously
  • High efficiency alternator
  • Robust and maintainance free
  • Starts charging 0.5A at 6.5 Knots, Maximum windspeed of 45 knots gives 30A
  • Should NOT be left unattended at windspeeds above 45 Knots

Starts charging 0.25 amps at 6.5 knots, produces 4 amps at 12 knots and 10 amps at 20 knots.
It is optimised to maintain continuous high outputs at higher wind speeds.
It operates safely and continuously in 45 knot winds, producing 30 amps (12 V) or 15 amps (24 V), but above that it requires some manual control, and therefore is not suitable for unattended applications.

Fan diameter 1220 mm Turning diameter 1300 mm Weight: 15.14 kg

Owners manual pdf



Voltage regulators

Voltage regulators and diode units are available for single, twin and triple battery sets.

When the batteries reach full charge the power produced is diverted to a wire wound resistor and dissipated as heat, thus ensuring the wind generator is loaded at all times. Aerogen4 Regulator for two batteries

  • A twin battery regulator which will limit the output of the wind charger and prevent overcharging of two batteries or battery banks.
  • Can be used to charge three batteries in conjuction with 4DU diode unit
  • Compatible with TWC Adverc
  • Built in temperature compensation 25mV/degC
Aerogen ModelWattsRated OutputMax outputPrices
Aerogen 4 – 12 v968 Amps15 Amps @ 40 knots$2024
Aerogen 4 – 24 v964 Amps7.5 Amps @ 40 knots$2024
Aerogen 6 – 12 v24020 Amps30 Amps @ 45 knots$2915
Aerogen 6 – 24 v24010 Amps15 Amps @ 45 knots$3025
Regulator (LVM4TB12) suites Aerogen 4 – 12 v$484
Regulator (LVM6TB12) suites Aerogen 6 – 12 v$484
Regulator (LVM6TB24) suites Aerogen 6 – 24 v$500
Spare Blades for Aerogen 2, 4 & 6$110 ea

Download brochure here.

ORDER HERE – WE SHIP IMMEDIATELY TO ANYWHERE IN AUSTRALIA
