1kw & 2kw Horizontal Wind Turbines

1kw and 2kw Horizontal Wind Turbines

The X2000L wind turbine system is a high-performance, reliable small wind generator system.

Simple to install, quiet, low start-up-speed, and high-output, makes it one of the best performing wind generator system in the world.

Exploded view of X2000L wind generator

Specifications:

1. Carbon steel body – compact, strong and safe.
2. Reinforced fibreglass blades – with optimised aerodynamic shape to enhance wind energy utlisation and maximise annual output.
3. Patented permanent-magnet ac generator with special stator that reduces torque and lets the wind generator quickly match the wind speed for maximum performance in any wind.
4. The tail has built-in mechanical yaw, which turns the wind generator out of the wind during high winds and storms, protecting the wind generator and ensuring long life.
5. Painted with a zinc-rich epoxy primer, and finished with a polyurethane anticorrosion top-coat which protects against ultraviolet, acid rain and salt spray.
6. Quality controller with digital screen output.  Comms are available at extra cost.
7. 3-years warranty – free repair or replacement – freight cost not included.

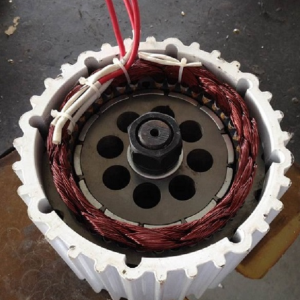

X2000L Stator

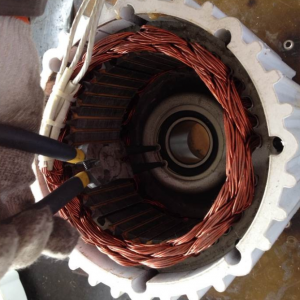

X2000L Stator with rotor

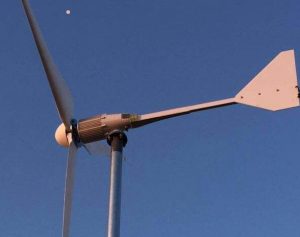

X2000L wind generator showing tail yaw.

Battery Charge Controller

This hybrid controller is sized for the maximum power that the wind generator can produce.   It includes a screen that displays the output and a dump load for when the battery becomes fully charged.  A serial cable port is provided for connecting the optional comms package.

X2000L Wind Generator Controller

See more details of the controller here:

We can deliver to anywhere in Australia, New Zealand, Philippines or the Pacific.

Order here, or request more details.
